Unitube Light-armored cable (GYXTW)

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

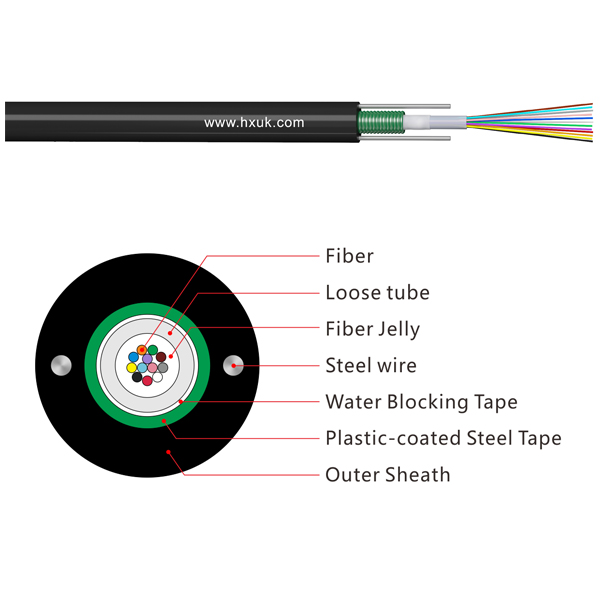

The fibers,200/250um, are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE)sheath.

Product Features/ PRODUCT

·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance and flexibility
·PSP enhancing moisture-proof
·Two parallel steel wires ensure tensile strength
·PE sheath gives excellent UV protection
·Small diameter, light weight and friendly installation
·Long delivery length

Product standard/ PRODUCT

GYXTW cable complies with Standard YD/T 769-2010

Optical Characteristics/ PRODUCT





G.652

G.655

50/125μm

62.5/125μm

Attenuation
(+20℃)

@850nm





≤3.0dB/km

≤3.0dB/km

@1300nm





≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

--





@1550nm

≤0.22dB/km

≤0.23dB/km





Bandwidth (Class A)

@850





≥500MHZ·km

≥500MHZ·km

@1300





≥1000MHZ·km

≥600MHZ·km

Numerical Aperture







0.200±0.015NA

0.275±0.015NA



Cable Cut-off Wavelength λcc

≤1260nm

≤1480nm








Technical Parameters/ PRODUCT


 Cable Type


Fiber Count


Cable Diameter
mm


Cable Weight
Kg/km


Tensile Strength
Long/Short Term  N


Crush Resistance
Long/Short Term
N/100m


Bending Radius
Static/Dynamic
mm

GYXTW-2~12

2~12

9.0

85

600/1000

500/1500

15D/30D

GYXTW-14~24

14~24

9.0

85

600/3000

1000/3000

15D/30D

GYXTW-2~12

2~12

10.0

105

1000/3000

1000/3000

15D/30D

GYXTW-14~24

14~24

10.0

105

1000/3000

1000/3000

15D/30D

GYXTW-26~36

26~36

14.0

190

1000/3000

1000/3000

15D/30D

GYXTW-38~48

38~48

15.0

216

1000/3000

1000/3000

15D/30D

Storage/Operating Temperature : -40℃ to + 70℃
