Modular MTP/MPO Patch Panel

The Hanxin High Density fiber patch panels are designed to accommodate high density applications in Data Centers and Telecommunication environments. This factory pre-populated and tested Fiber Patch Panel saves on-site installation time and increase reliability. The design of enclosure allows for easy connection to the LC adapters using Hanxin’s multi-fiber optical patch cords (sold separately) and is mountable in a standard 19in or 23in rack or cabinet frame. Maximum expandable to 96 LC ports. The rack mount MTP/MPO patch panel is a high density, modular (LX-L MTP/MPO Cassette or LX-M Adapter Plate), fully-loaded LC Flat 1U fiber patch panel. It is a complete Fiber Adapter Panel based turnkey solution with a total of max 96 LC fibers (24 LC QUAD) in 1U. This modular fiber patch panel is factory pre-loaded with Qty. 4 12/24 fiber LX-L MTP/MPO Cassettes or LX-M Adapter Plates for quick implementations in 10/100G networks.

● UP to 96 Fiber LC Ports in 1U
● Qty. 4 LX-L MTP/MPO Cassettes with 12/24 LC
● Qty. 4 LX-M Adapter Plates with 12/24 LC
● Flexibility to Mix Adapter Plates with Cassettes in Patch Panel
● Available in SM, OM1, OM2, OM3 and OM4 fiber grades
● Flat Front Panel for Optimal Cable Routing
● Removable Top for Easier Fiber Cable Management
● Easily Accessible MPO/MTP Ports for Connection to Trunk Cable
● Compliant IEC-61754-7, EIA/TIA-604-5 & RoHS
● Factory terminated and tested
● MPO/MTP components feature superior optical and mechanical properties

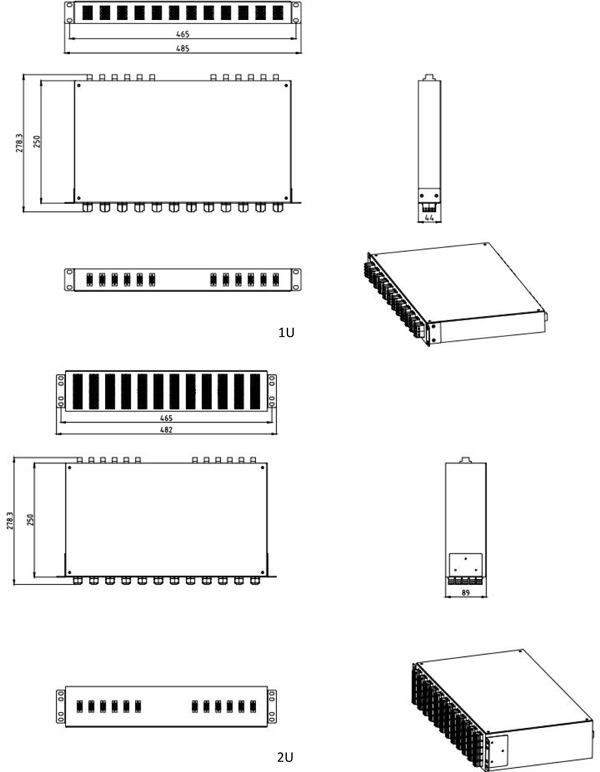

Dimensions and Capability
Height	Dimensions(WDH)	Quantity of Cassette/Plate		Max Capacity
		LX-L Cassette	LX-M Plate
1U	485mm294mm44mm	4	4	96

LX-L Cassette Technical Specifications
SPECIFICATION	LX-L-1	LX-L-2
Total Fiber Count	12	24
Front Adapter Type	LC Duplex	LC QUAD
Front Port Count	6	6
Rear Adapter Type	MTP/MPO	MTP/MPO
Rear Port Count	1	2

LX-M Plate Technical Specifications
SPECIFICATION	LX-M-1	LX-M-2
Total Fiber Count	12	24
Front Adapter Type	LC Duplex	LC QUAD
Front Port Count	6	6

Operation Conditions
Operating Temperature	-20℃ -- +60℃
Storage Temperature	-40℃ -- +70℃
Humidity	90% at 30℃
Air Pressure	70kPa – 106kPa

Shipping Information
Package Contents	Patch panel, 1 unit
Package Dimensions(WHD)	530mm380mm115mm
Material	Carton box
Weight	10 KG
