Stranded Loose Tube Armored Cable(GYTA53)

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

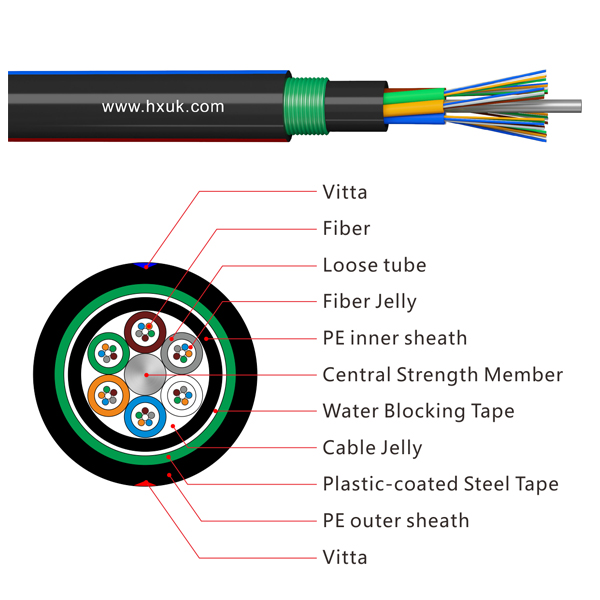

The fibers, 200/250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core. which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Product Features/ PRODUCT

· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· PE sheath protects cable from ultraviolet radiation
· Good crush ability,applies for duct and directly buried application
· To assure the water-proof function by:
   ·Single steel wire as central strength member
   ·Special tube filling compound ensure a critical protection of fiber
   ·Fully filled in the cable
   ·Double APL layers prevent the moisture
   ·Good water-blocking tape prevent the sinking vertically


Product Standard / PRODUCT

·GYTA53 cable complies with Standard YD/T 901-2009 as well as IEC 60794-1.

Optical Characteristics / PRODUCT



G.652

G.655

50/125μm

62.5/125μm

Attenuation
     (+20℃)


@850nm





≤3.0dB/km

≤3.0dB/km

@1300nm





≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

≤0.40dB/km





@1550nm

≤0.22dB/km

≤0.23dB/km





Bandwidth (Class A)





@850





≥500MHZ·km

≥500MHZ·km

@1300





≥1000MHZ·km

≥600MHZ·km

Numerical Aperture







0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc






≤1260nm

≤1480nm





Technical Parameters/ PRODUCT

Cable Type

Fiber Count

Loose tube count




Filler count

Cable Diameter

     mm


Cable Weight
Kg/km

Tensile Strength
 Long/short term       N

Crush Resistance
 Long/short term
 N/100m

Bending Radius
Static/dynamic
mm

GYTA53-2~6

2~6

1

4

12.5

175

1000/3000

1000/3000

15D/30D

GYTA53-8~12

8~12

2

3

12.5

175

1000/3000

1000/3000

15D/30D

GYTA53-14~18

14~18

3

2

12.5

175

1000/3000

1000/3000

15D/30D

GYTA53-20~24

20~24

4

1

12.5

175

1000/3000

1000/3000

15D/30D

GYTA53-26~30

26~30

5

0

12.5

175

1000/3000

1000/3000

15D/30D

GYTA53-32~36

32~36

5

0

12.5

175

1000/3000

1000/3000

15D/30D

GYTA53-38~48

38~48

5

0

12.5

175

1000/3000

1000/3000

15D/30D

GYTA53-50~60

50~60

5

0

12.5

175

1000/3000

1000/3000

15D/30D

GYTA53-62~72

62~72

6

0

13.2

200

1000/3000

1000/3000

15D/30D

GYTA53-74~84

74~84

7

1

15.0

230

1000/3000

1000/3000

15D/30D

GYTA53-86~96

86~96

8

0

15.0

230

1000/3000

1000/3000

15D/30D

GYTA53-98~108

98~108

9

1

16.0

260

1000/3000

1000/3000

15D/30D

GYTA53-110~120

110~120

10

0

16.0

260

1000/3000

1000/3000

15D/30D

GYTA53-122~132

122~132

11

1

18.0

300

1000/3000

1000/3000

15D/30D

GYTA53-130~144

134~144

12

0

18.0

330

1000/3000

1000/3000

15D/30D

GYTY53-146~216

146~216

18

0

18.0

330

1000/3000

1000/3000

15D/30D

storage/Operating Temperature : -40℃ to + 70℃
