Figure 8 Cable(GYXTC8S)

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

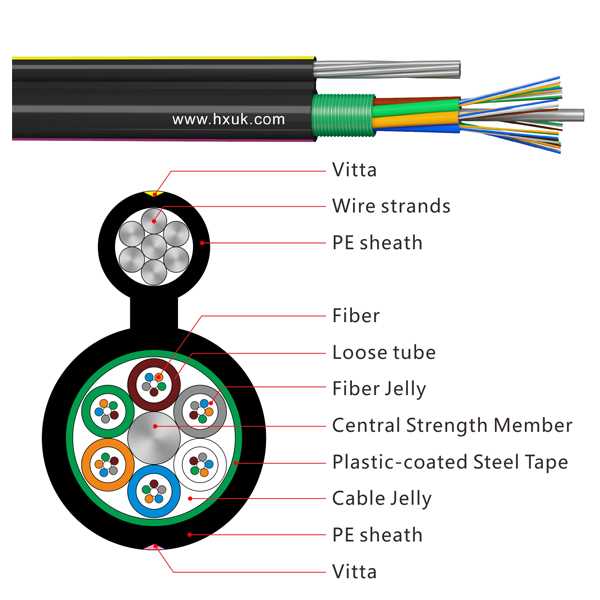

The fibers, 200/250μm,are positioned in a loose tube made of a high modulus plastic, the tubes are filled with a water-resistant filling compound. The two sides PSP are longitudinally applied over the outer loose tube. Steel wires and loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.

Product Features/ PRODUCT

·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·PSP enhancing moisture-proof
·Small diameter, light weight and friendly installation
·Long delivery length and low price.

Product Standard/ PRODUCT

·GYXTC8S cable complies with Standard YD/T 1155-2011 as well as IEC 60794-1.

Optical Characteristics/ PRODUCT



G.652

G.655

50/125μm

62.5/125μm

Attenuation
(+20℃)

@850nm





≤3.0dB/km

≤3.0dB/km

@1300nm





≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

≤0.40dB/km





@1550nm

≤0.22dB/km

≤0.23dB/km





Bandwidth (Class A)

@850





≥500MHZ·km

≥500MHZ·km

@1300





≥1000MHZ·km

≥600MHZ·km

Numerical    Aperture







0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc



≤1260nm

≤1480nm





Technical Parameters/ PRODUCT

Cable Type

Fiber Count

 Cable Diameter
     mm

Cable Weight   Kg/km

Supporting Wire Spec

Connection Diameter      mm

Tensile Strength
    N

Crush Resistance  N/100m

Bending Radius
     mm

GYXTC8S

2~12

7.0×14.0

118

ф1.0mm×7
     steel strand

High * width
     3.0×2.5

3500/7000

1000/3000

15D/30D

GYXTC8S

14~24

8.0×15.1

129

ф1.0mm×7
     steel strand

High * width      3.0×2.5

3500/7000

1000/3000

15D/30D


Storage/Operating Temperature : -40℃ to + 70℃
