Mini Bundle Cable(GJFV) |
Mini Bundle Cable(GJFV)
Product Show/ PRODUCT
Copyrights Reserved
Product description/ PRODUCT

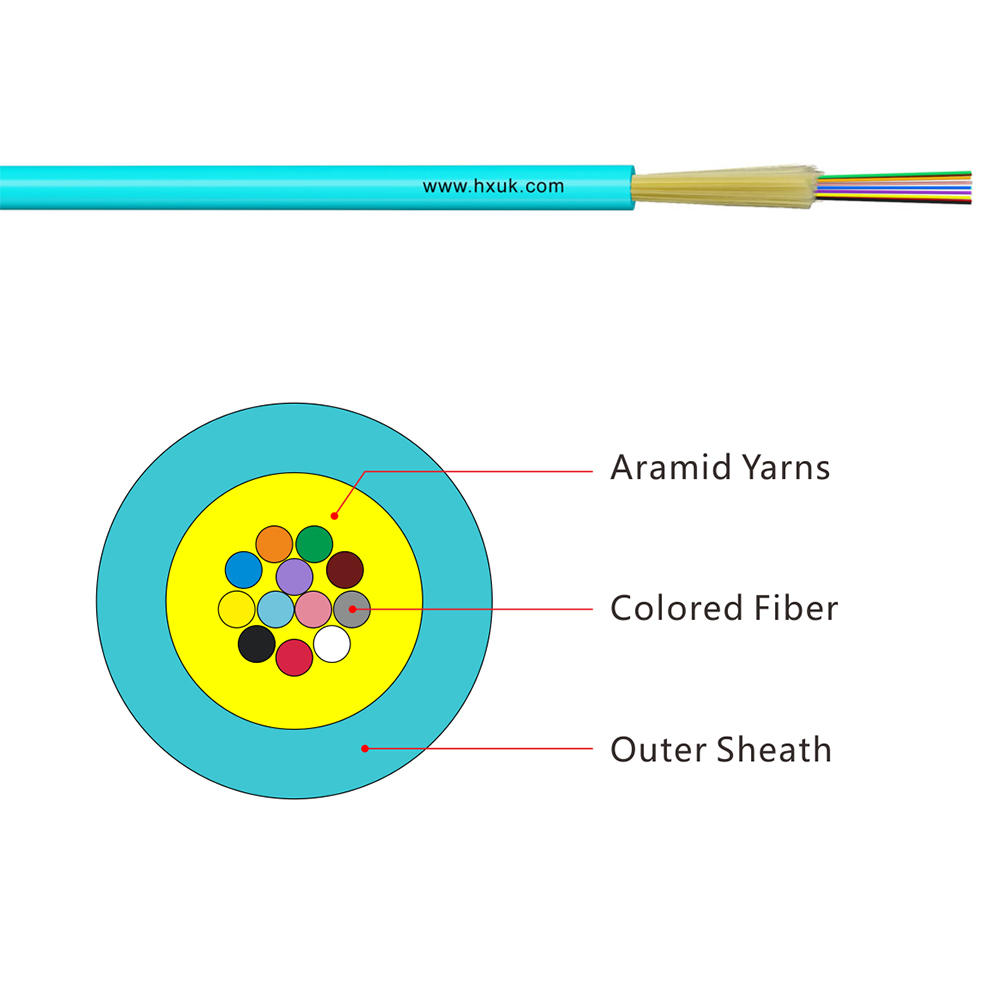

GJFV cable is made by evenly applying strands of Aramid yarns as the strength member over ф250μm fibers,twisting fibers with aramid yarn,then is completed with PVC(LSZH)jacket.
Products Features/ PRODUCT
·Mini bundle cable,high strength aramid yarn,high-performance jacket
·Small bend radius, light weight,excellent strippability,easily strip and splice.
·Good mechanical and environment performance
·Flame retardant or stop fire jacket,Provide good security.
Products Standard/ PRODUCT
·GJFV cable complies with Standard YD/T1258.2-2009、ICEA-596、GR-409、IEC794 etc; and meets with the requirements of UL approval for OFNR.
Optical Characteristics/ PRODUCT
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
≤0.36dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth |
@850 |
|
|
≥500MHZ·km |
≥200MHZ·km |
|
@1300 |
|
|
≥1000MHZ·km |
≥600MHZ·km |
|
|
Numerical Aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelength |
|
≤1260nm |
≤1480nm |
|
|
Technical Parameters/ PRODUCT
|
Cable Type |
Fiber Count |
Cable Diameter mm |
Cable Weight Kg/km |
Tensile Strength Long/Short N |
Crush Resistance Long/Short N/100m |
Bending Radius Static/Dynamic |
|
GJFV |
2-12 |
3.0 |
7.5 |
150/300 |
80/150 |
30D/15D |
|
GJFV |
14-24 |
3.5 |
8 |
150/300 |
80/150 |
30D/15D |
Storage/Operating temperature:-20℃～﹢60℃
