Indoor Bundle cable(GJFJV)

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

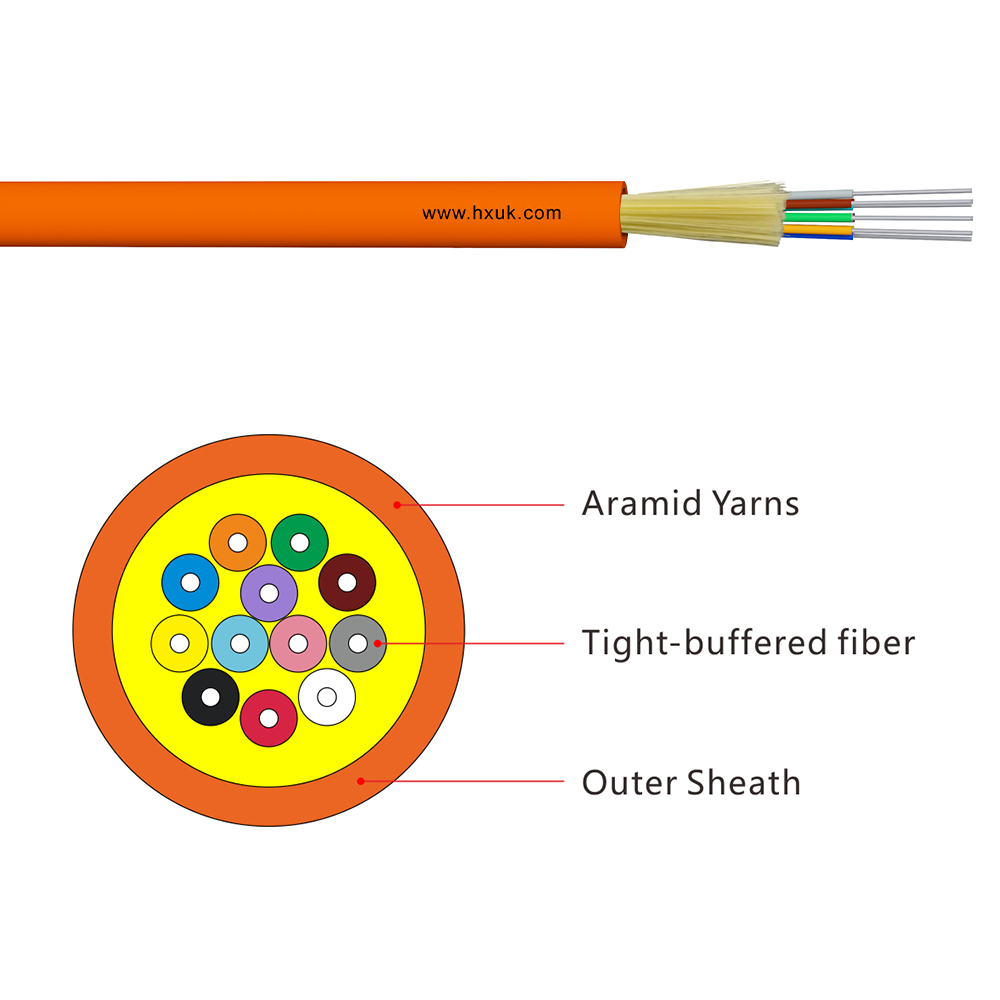

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.

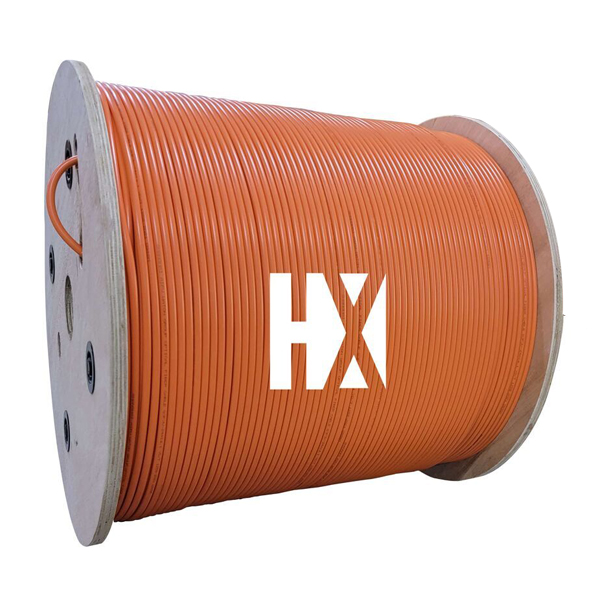

Product Picture/ PRODUCT




Products Features/ PRODUCT

·Small diameter, light weight,flame retardant,excellent strippability
·Low-attenuation,High flexibility
·No need for transition connector box or pigtail between tight buffer fiber and cable,low cost with installation cause to it’s no needs to clean the water-proofing ointment.

Products Application/ PRODUCT

·Suitable for Indoor distribution
·Pigtail jumper, patch cord
·Optical connection of Communication equipment and connection machine.
·Floor installation, maintenance friendly

Products Standard/ PRODUCT

·GJFJV cable complies with Standard YD/T1258.2-2009、ICEA-596、GR-409、IEC794 etc; and meets with the requirements of UL approval for OFNR and OFNP.

Fiber Code/ PRODUCT


MPC-02

MPC-04

MPC-06

MPC-08

MPC-10

MPC-12

Cable Diameter(mm)

4.1±0.25

4.8±0.25

5.1±0.25

6.2±0.25

6.5±0.25

6.8±0.25

Cable Weight(kg/km)

12

20

24

29

32

35

Tight Buffer Fiber Diameter

900±50μm


Mechanical Characteristics/ PRODUCT

Tensile Strength

Long Term

80N

60

50

Short Term

150N

120

100

Crush Resistance

Long Term

100N/100mm

100N/100mm

100N/100mm

Short Term

500N/100mm

500N/100mm

500N/100mm

Bending Radius

Dynamic

20XD

20XD

20XD

Static

10XD

10XD

10XD

Optical Characteristics/ PRODUCT


G.652

G.655

50/125μm

62.5/125μm

Attenuation
     (+20℃)

@850nm



≤3.0dB/km

≤3.0dB/km

@1300nm



≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

≤0.36dB/km



@1550nm

≤0.22dB/km

≤0.23dB/km



Bandwidth      (Class A)

@850



≥500MHZ·km

≥200MHZ·km

@1300



≥1000MHZ·km

≥600MHZ·km

Numerical Aperture




0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength


≤1260nm

≤1480nm



Environmental Characteristics/ PRODUCT

Transport Temperature

-20℃~﹢60℃

Storage Temperature

-20℃~﹢60℃

Installation Temperature

-5℃~﹢50℃

Operating Temperature

-20℃~﹢60℃

Storage/Operating temperature:-20℃~﹢60℃
