Multi Purpose Break-out Cable( GJFJHV)

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

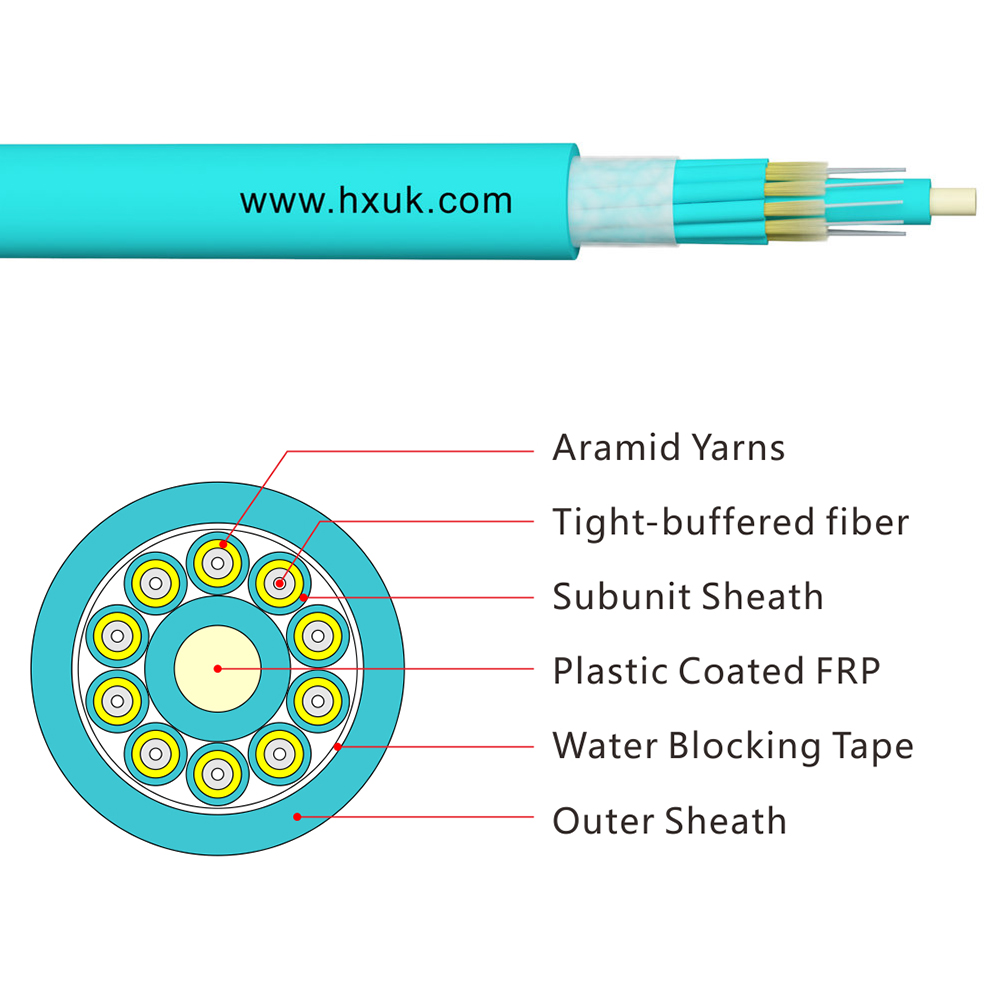

GJFJHV cable,the tight buffer fiber is placed on the surface with a layer of aramid yarn as strength member units,multi fibers as the subunit twist with FRP(and some cushions) into the circle ,and finally into fiber optic cable with PVC or LSZH sheath,with dry-type water-blocking materials between fiber and sheath.

Products Features/ PRODUCT

·Each sub cable contains aramid yarn,good bend performance,without gel,cleaning friendly,easy construction and connection.
·Tight buffer fiber with single strength member and sheath to overcome the effect from bad environment and Mechanical stress.
·LSZH sheath,anti-retardant,Self-extinguishing,Suitable for machine room, cable shaft and used in indoor environment such as wiring inside the wall.
·LSZH sheath,UV,Waterproof mildew,ESCR,No acid gas release,non-corrosive room equipment, suitable for indoor and outdoor use or need a high flame-retardant grades of the   indoor environment (such as wiring in the ceiling, open wire cabling etc.)

Products Application/ PRODUCT

·Indoor horizontal wiring, vertical wiring in buildings, LAN network.
·Standard core can be directly apply to connectors,to use for device connecting
·Used as a backbone cable tail can access directly from the indoor and outdoor to save the junction box, isolated lightning, improve system reliability.

Products Standard/ PRODUCT

·GJFJHV cable complies with Standard YD/T1258.4-2009、ICEA-596、GR-409、IEC794 etc; and meets with the requirements of UL approval for OFNR.

Optical Characteristics/ PRODUCT



G.652

G.655

50/125μm

62.5/125μm

Attenuation
     (+20℃)

@850nm





≤3.5dB/km

≤3.5dB/km

@1300nm





≤1.5dB/km

≤1.5dB/km

@1310nm

≤0.45dB/km

≤0.45dB/km





@1550nm

≤0.30dB/km

≤0.30dB/km





Bandwidth      (Class A)

@850





≥500MHZ·km

≥200MHZ·km

@1300





≥1000MHZ·km

≥600MHZ·km

Numerical Aperture







0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength



≤1260nm

≤1480nm






Technical Parameters/ PRODUCT


     Fiber Count


     Subunit Diameter
     mm


     Cable Diameter
     mm


     Cable Weight
     Kg/km


     Tensile Strength
     Long/Short Term
     N


     Crush Resistance        Long/Short Term
     N/100m


     Bending Radius
 Static/Dynamic
     mm

2芯

2.0

7.0±0.5

45

500/1000

400/800

30D/15D

4芯

2.0

7.0±0.5

45

500/1000

400/800

30D/15D

6芯

2.0

8.3±0.5

62

500/1000

400/800

30D/15D

8芯

2.0

9.4±0.5

85

500/1000

400/800

30D/15D

10芯

2.0

10.7±0.5

109

500/1000

400/800

30D/15D

12芯

2.0

12.2±0.5

140

500/1000

400/800

30D/15D

Environmental Characteristics/ PRODUCT

Transport Temperature

-20℃~+60℃

Storage Temperature

-20℃~+60℃

Installation Temperature

-5℃~+50℃

Operating Temperature

-20℃~+60℃
