Stainless steel parallel steel wire reinforced cable-GYMXW

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

Mini F-SST contains mini F-SST as optical fiber unit, which promotes maximum core to 24. According to different applications, it is jacketed by LSZH, PE or PA. Mini F-SST cable has small size and low weight. With perfect mechanical performance and wide temperature and wide temperature range, it can withstand the strong pressure. And is suitable for indoor cabling, pipelines and ground slot laying.

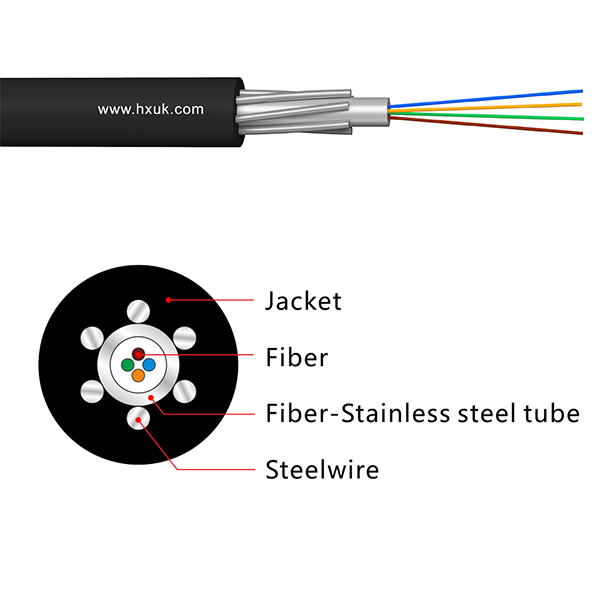

Construction/ PRODUCT


    • Single mode, multimode optical fiber, maximum of 24 cores
    • F-SST
    • LSZH, PE, or PA jacketing, anti-ultraviolet radiation


Features/ PRODUCT


    • Small size and low weight
    • Good mechanical performance, withstanding the tensile force and force and super pressure
    • Waterproof, moisture-proof, anti-rodents,no rusty
    • Resistance to acid, alkali, salt corrsion
    • Non-toxic, flame retardant, fire and explosion proof
    • Outstanding high and low temperature performances


Application/ PRODUCT


    • Indoor cabling
    • Pipe laying
    • Ground slot laying
    • Temperature sensing cable
    • Fire monitoring


Temperature range/ PRODUCT


    • Operating temperature: -60~+80℃
    • Storage temperature: -60~+80℃


Min. bending radius/ PRODUCT


    • Static=10D
    • Dynamic=20D


Replacement/ PRODUCT

GYTA, GYTS, GYXTW, GYXTC8S, GYTC8S

Fiber core number

structure size

Cable weight

Allowable tensile force (N)

Allowing crush force (N)

Pipe diameter

Wire diameter

Cable diameter

kg / km

Long-term / short-term

Long-term / short-term

4

1.35

0.3

3.95

18.4

500/1000

2000/4000

6

1.5

0.45

4.6

26.3

1000/2000

2000/4000

8

1.8

0.45

4.9

29.2

1000/2000

2000/4000

12

2

0.45

5.1

31.2

1000/2000

2000/4000

24

2.4

0.5

6

41.1

1000/2000

2000/4000
