Stainless steel tube self-supporting 8-shaped light-GYMXC8Y

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

F-SST self-supporting figure 8 cable contains mini F-SST as optical fiber unit and single steel wire or wire rope strengthening members. The maximun number is 24 .It is jacketed with LSZH, PE or PA. F-SST self-supporting figure 8 cable has small size and low weight. With perfect mechanical performance and wide temperature and wide temperature range, it can withstand the strong pressure and harsh environment, and is suitable for overhead laying. It is perfect solution to replace the traditional figure 8 cables.

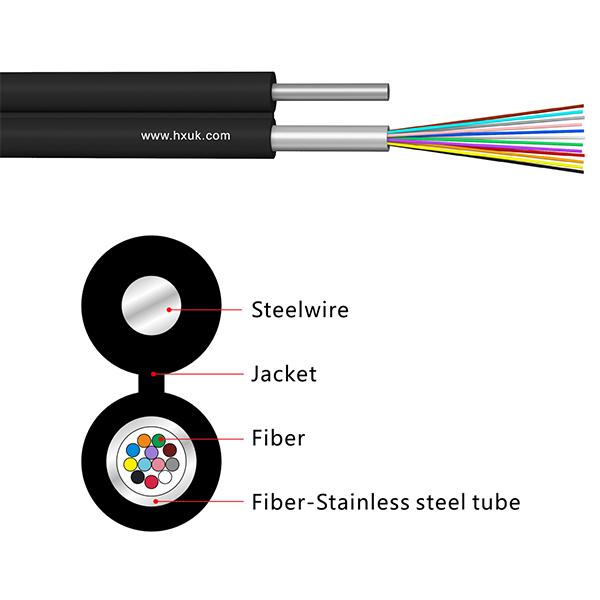

Construction/ PRODUCT

    • Single mode, multimode fiber optical cable, maximum of 24 cores
    • F-SST
    • LSZH, PE, or PA jacketing, anti-ultraviolet radiation
    • Steel wire or wire rope strengthening

Features/ PRODUCT

    • Small size and low weight
    • Good mechanical performance, withstanding the tensile force and force and super pressure
    • Waterproof, moisture-proof, anti-rodents,no rusty
    • Resistance to acid, alkali, salt corrsion
    • Outstanding high and low temperature performances

Application/ PRODUCT

    • Overhead


Temperature range/ PRODUCT

    • Operating temperature: -60~+80℃
    • Storage temperature: -60~+80℃

Min. bending radius/ PRODUCT

    • Static=10D
    • Dynamic=20D


Replacement/ PRODUCT

GYXTC8S, GYTC8S



Fiber counts

size

Cable weight

Allowable tensile force (N)

Allowing crush force (N)

d

d1

t

kg / km

Long-term / short-term

Long-term / short-term

2

1.20

1.20

1.00

31.88

1000/2000

2500/5000

4

1.35

1.35

1.00

36.62

1250/2500

2000/4000

6

1.50

1.50

1.00

44.42

1500/3000

2000/4000

8

1.75

1.75

1.00

53.37

1750/3500

2000/4000

12

2.00

2.00

1.00

57.43

1750/3500

1000/2000
