Miniature stainless steel tube fiber optic cable-GYMXY

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

F-SST 4 steel wire reinforced cable contains mini F-SST as optical fiber unit and 6 steel wire or wire rope strengthening member. The maximum core is 24. It is jacketed with PE or PA. F-SST 4 steel wire reinforced cable has small size and low weight. With perfect mechanical performance and wide temperature and wide temperature range, it can withstand the strong pressure, harsh environment and is suitable for wide range and convenient for laying.

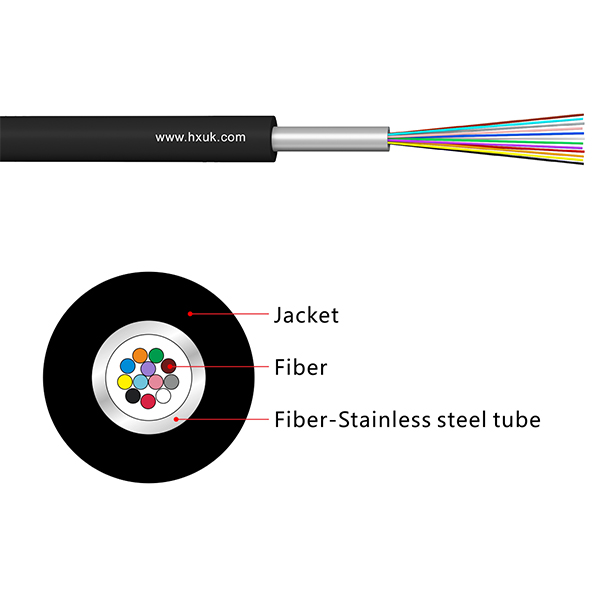

Construction/ PRODUCT


    • Single mode, multimode optical fiber, maximum of 24 cores
    • F-SST
    • PE, or PA jacketing, anti-ultraviolet radiation
    • 6 steel wire strengthening


Features/ PRODUCT


      • Small size and low weight
      • Good mechanical performance, withstanding the tensile force and force and super pressure
      • Waterproof, moisture-proof, anti-rodents,no rusty
      • Resistance to acid, alkali, salt corrsion
      • Outstanding high and low temperature performances


Application/ PRODUCT


    • Overhead, pipe and under-ground laying
    • Temperature sensing cable, Fire monitoring and security monitoring
    • Subway, tunnel laying
    • Emergency repair
    • military



Temperature range/ PRODUCT


    • Operating temperature: -60~+80℃
    • Storage temperature: -60~+80℃


Min. bending radius/ PRODUCT


    • Static=10D
    • Dynamic=20D



Replacement/ PRODUCT


    • GYTA, GYTS, GYXTW, GYXTC8S, GYTC8S



    Fiber core number

    size

    Cable weight

    Allowable tensile force (N)

    Allowing crush force (N)

    d

    t

    D

    kg / km

    Long-term / short-term

    Long-term / short-term

    1

    0.90

    1.00

    3.00

    9.35

    160/320

    2000/4000

    2

    1.20

    1.00

    4.00

    11.91

    200/400

    2500/5000

    4

    1.35

    1.20

    6.00

    13.23

    230/460

    2000/4000

    6

    1.50

    1.20

    8.40

    16.92

    250/500

    2000/4000

    8

    1.75

    1.20

    10.40

    19.41

    300/600

    2000/4000

    12

    2.00

    1.50

    15.00

    26.42

    350/700

    1000/2000

    twenty four

    2.40

    1.80

    27.60

    36.48

    400/800

    1000/2000
