1x8 Block Type Splitter

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

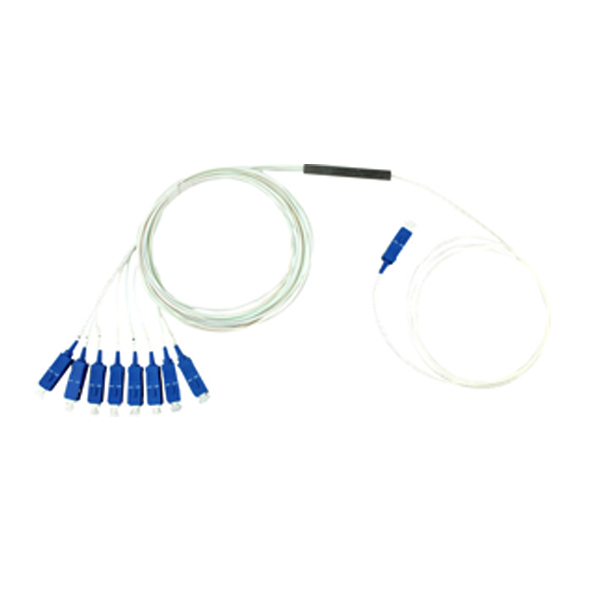

1x8 Block Type Splitter

Features / PRODUCT

Ø Low insertion loss, Low PDL and High reliability
Ø High return loss and Good repeatability
Ø Wide wavelength range
Ø Excellent channel-to-channel uniformity

Applications / PRODUCT

Ø LAN, WAN and Metro Networks
Ø FTTH project & FTTX Deployments
Ø CATV System
Ø GPON, EPON
Ø Fiber Optic Test Equipment
Ø Data-base Transmit Broadband Net

Technical Specifications / PRODUCT


Item

1x2

1x4

1x8

1x16

1x32

1x64

1x128

Fiber Type

G.657.A

Working Wavelength

1260nm~1650nm

Standard Insertion Loss(dB)

≤4.2

≤7.6

≤10.7

≤14.0

≤17.2

≤20.8

≤24.0

P-Grade Insertion Loss(dB)

≤4.0

≤7.4

≤10.5

≤13.8

≤17.0

≤20.4

≤23.7

Uniformity(dB)

≤0.6

≤0.8

≤0.8

≤1.0

≤1.5

≤2.0

≤2.0

PDL(dB)

≤0.2

≤0.2

≤0.3

≤0.3

≤0.3

≤0.4

≤0.5

Wavelength Dependent Loss(dB)

≤0.6

≤0.8

≤0.8

≤1.0

≤1.5

≤2.0

≤2.0

Return Loss(dB)

≥50

Directivity(dB)

≥55

Operating Temp.Gange

-40℃~+85℃

Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.


Item

2x2

2x4

2x8

2x16

2x32

2x64

2x128

Fiber Type

G.657.A

Working Wavelength

1260nm~1650nm

Standard Insertion Loss(dB)

≤4.4

≤8.0

≤11.0

≤14.6

≤17.8

≤21.0

≤24.4

P-Grade Insertion Loss(dB)

≤4.2

≤7.7

≤10.8

≤14.1

≤17.4

≤20.7

≤24.0

Uniformity(dB)

≤0.8

≤1.0

≤1.2

≤1.5

≤1.8

≤2.0

≤3.0

PDL(dB)

≤0.2

≤0.2

≤0.3

≤0.3

≤0.3

≤0.4

≤0.5

Wavelength Dependent Loss(dB)

≤0.8

≤1.0

≤1.2

≤1.5

≤1.8

≤2.0

≤3.0

Return Loss(dB)

≥50

Directivity(dB)

≥55

Operating Temp.Gange

-40℃~+85℃

Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.

Encapsulation Size/ PRODUCT

Item

1×2

1×4

1×8

1×16

1×32

1×64

Length*Width*Height(mm)

60×7×4

60×7×4

60×7×4

60×12×4

80×20×6

100×40×6

Item

2×2

2×4

2×8

2×16

2×32

2×64

Length*Width*Height(mm)

60×7×4

60×7×4

60×7×4

80×12×6

100×20×6

100×40×6
