Indoor Simplex Armored Optical Fiber Cable(GJSFJV)

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

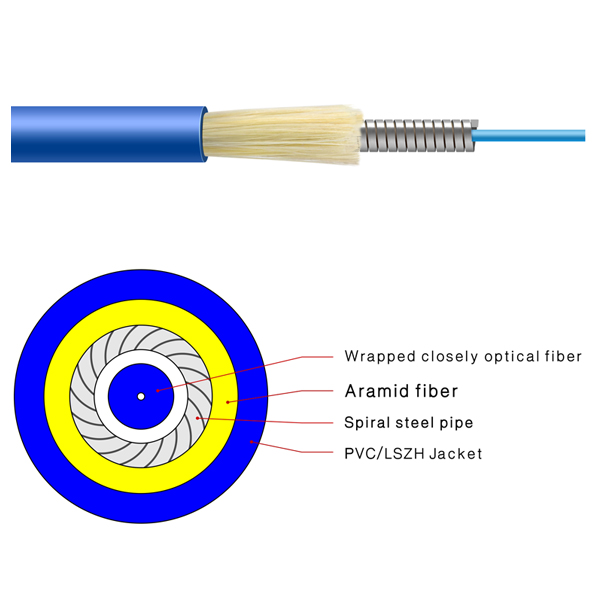

GJSFJV fiber cable, ф900μm or ф600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into fiber optic cable with PVC or LSZH sheath.

Product Features/ PRODUCT

·Stainless steel wires enhance the crush resistance of the cable and anti-rodent
·High strength aramid yarn,high performance outer sheath
·Small bending radius,light weight,flexibility,and friendly installation.
·Good mechanical and environmental performance.
·Flame retardant outer sheath provide good safety.


Product Application / PRODUCT

·All kinds of connector
·Fiber optic pigtails, patch cords.
·Fiber optic equipment and instrument
·Indoor cabling,building cabling,LAN, etc
·Long distance, outdoor/indoor cabling, trunking,etc
·Backbone network to the equipment in the building
·The cabling from desk or under the carpet to ceiling
·Small bending radius,large capacity,multi user indoor installation,unit  cabling,independent using,convenient connection with each end devices.
·Recommend high density wiring,small installation space and curvature

Standards/ PRODUCT

GJSFJV cable comply with Standard YD/T 2488-2013, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR, OFNP.

Optical Characteristics / PRODUCT



G.652

G.655

50/125μm

62.5/125μm

Attenuation
  (+20℃)

@850nm





≤3.0dB/km

≤3.0dB/km

@1300nm





≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

≤0.36dB/km





@1550nm

≤0.22dB/km

≤0.23dB/km





Bandwidth
(Class A)

@850





≥500MHZ·km

≥200MHZ·km

@1300





≥1000MHZ·km

≥600MHZ·km

Numerical Aperture







0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc



≤1260nm

≤1480nm






Technical Parameters / PRODUCT


Cable Type


Fiber Count


Tight  Diameter
mm


Cable Diameter
mm


Cable Weight
Kg/km


Tensile Strength
Long/Short Term N


Crush Resistance
Long/Short Term
N/100m


Bending Radius
Static/Dynamic
mm

GJSFJV

1

0.6

2.0

11

300/750

200/1000

20D/10D

GJSFJV

1

0.6

2.2

12

300/750

200/1000

20D/10D

GJSFJV

1

0.6

2.4

13

300/750

200/1000

20D/10D

GJSFJV

1

0.9

3.0

15

300/750

200/1000

20D/10D

Storage/Operating Temperature : -20℃ to + 60℃
