Indoor Duplex Armored Optical Fiber Cable(GJSFJBV)

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

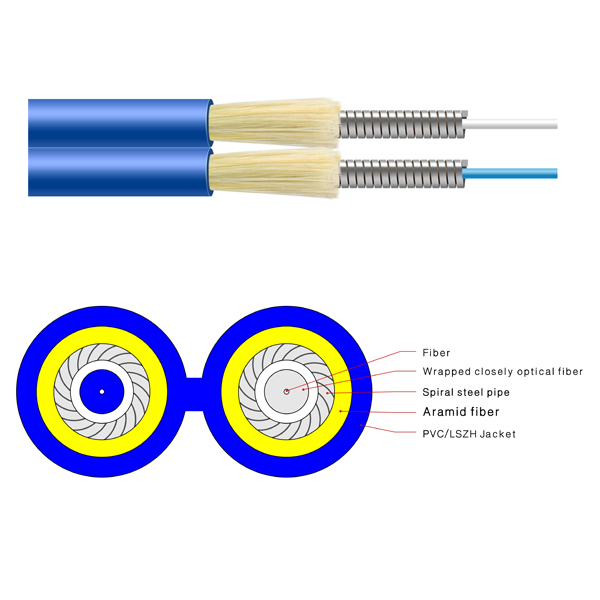

GJSFJV fiber cable, ф900μm or ф600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into figure 8 shape fiber optic cable with PVC or LSZH sheath.

Product Features/ PRODUCT

·Multi fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent
·High strength aramid yarn,high performance outer sheath
·Light weight,flexibility,and friendly installation.
·Good mechanical and environmental performance.
·Flame retardant outer sheath provide good safety.


Product Application / PRODUCT

·All kinds of connector
·Fiber optic pigtails, patch cords.
·Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc
·Fiber optic equipment and instrument
·Indoor cabling,building cabling,LAN, etc
·Long distance, outdoor/indoor cabling, trunking,etc
·Backbone network to the equipment in the building
·Small installation space cabling

Prouduct Standards/ PRODUCT

·GJSFJBV cable comply with Standard YD/T 2488-2013, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR, OFNP.

Optical Characteristics / PRODUCT



G.652

G.655

50/125μm

62.5/125μm

Attenuation
     (+20℃)

@850nm





≤3.0dB/km

≤3.0dB/km

@1300nm





≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

≤0.36dB/km





@1550nm

≤0.22dB/km

≤0.23dB/km





Bandwidth      (Class A)

@850





≥500MHZ·km

≥500MHZ·km

@1300





≥1000MHZ·km

≥600MHZ·km

Numerical Aperture







0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc



≤1260nm

≤1480nm






Technical Parameters/ PRODUCT


     Cable Type

      Tight Diameter
     mm


Cable Diameter
     mm


 Cable Weight
     Kg/km


 Tensile Strength     Long/Short Term
     N


 Crush  Resistance      Long/Short Term
     N/100m



Bending Radius       Static/Dynamic
     mm

GJSFJBV

0.6

2.0*4.1

30

300/750

200/1000

20H/10H

GJSFJBV

0.6

2.8*5.7

35

300/750

200/1000

20H/10H

GJSFJBV

0.9

3.0*6.1

43

300/750

200/1000

20H/10H

Storage/Operating Temperature : -20℃ to + 60℃
