JET indoor/outdoor distribution cable(GYFXTY)

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

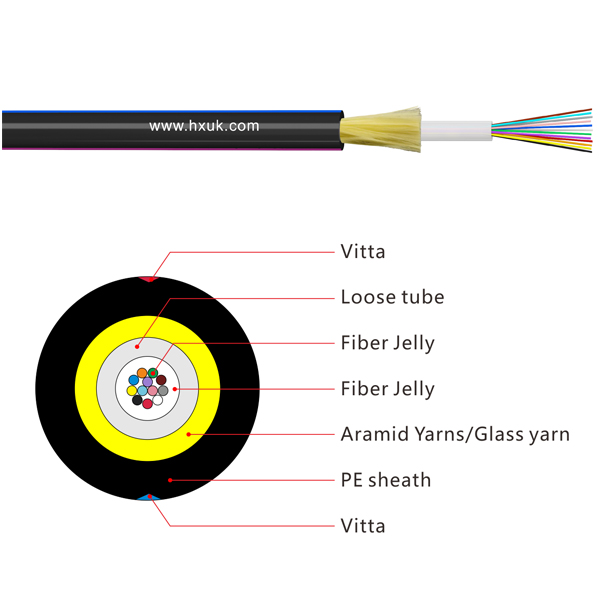

The fibers,200/250μm, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A layer of aramid yarn or high strength glass is applied around the cable core as additional strength member. Then, the cable is completed with a black or color HDPE sheath.

Product Features/ PRODUCT

·Non-metallic constructure helps to avoid Radio frequency interference and Electromagnetic interference, which is better for distribution in a minefield
·Specially designed compact structure is good at preventing loose tubes from shrinking
·Aramid yarn ensures good performance of tensile strength
·Good fire prevention performance
·The high strength glass fiber can protect the cable from mouse bites

·High dense fiber packed, small diameter and light weight,soft and strong tensile ability;Adopting PVC or LSZH sheath, can be indoor/outdoor distribution flexibly


Product Application / PRODUCT

·The usage of micro cable, it applies for fiber to the home project.

Optical Characteristics / PRODUCT


G.652

G.655

50/125μm

62.5/125μm

Attenuation
(+20℃)

@850nm



≤3.0dB/km

≤3.0dB/km

@1300nm



≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km




@1550nm

≤0.22dB/km

≤0.23dB/km



Bandwidth (Class A)

@850



≥500MHZ·km

≥500MHZ·km

@1300



≥1000MHZ·km

≥600MHZ·km

Numerical Aperture




0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc


≤1260nm

≤1480nm



Technical Parameters / PRODUCT


Cable Type


Fiber Count


Cable Diameter
mm


Cable Weight
Kg/km


Tensile Strength
Long/Short Term
N


Crush Resistance
Long/Short Term
N/100m


Bending Radius
Static/Dynamic
mm

GYFXTY

2-24

6.0

20

1000/2000

200/400

30D/15D

GYFXTY

2-24

6.5

25

1200/2500

250/500

30D/15D

GYFXTY

2-24

7.0

28

1500/3000

250/500

30D/15D

GYFXTY

2-24

7.5

30

1800/3500

250/500

30D/15D


storage/Operating Temperature : -40℃ to + 70℃
