Crystal Head

RJ45 Connector

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

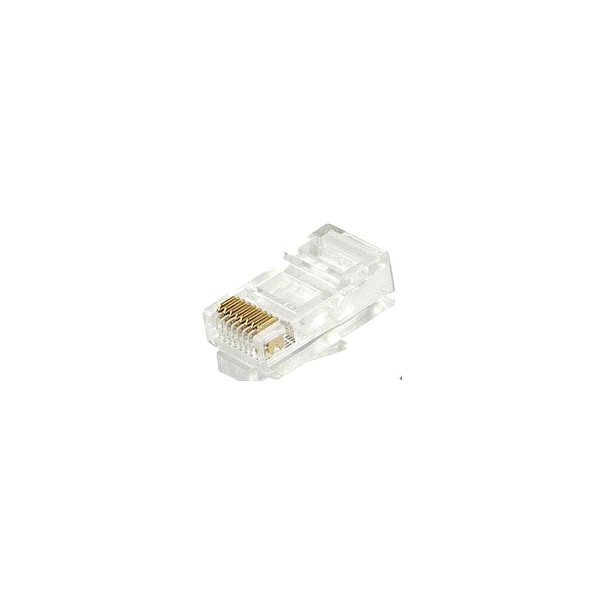

RJ45 Connector

Product Overview/ PRODUCT

The crystal head is an important interface device in the network connection. It is a plastic connector that can be inserted along a fixed direction and automatically prevents it from falling off. It is used for network communication and is called "crystal head" because of its crystal appearance and crystal appearance. Mainly used to connect the network card ports, hubs, switches, phones and so on.

Product Features/ PRODUCT

● Tensile test: cable to socket tensile strength of at least 20 pounds (89N).
● endurance test: plug test 2000 times, gold is not tired.
● PC material fire rating 94V-2 & 94V-0 (UL-NO.E50075).
● High-strength copper alloy [JIS C5191R-H (PBR-2)] standard material.
Plating specifications are 100microinches nickel plated and gold plated at the contact points.

Product Application/ PRODUCT

For voice calls, network communication links, network cabling components. Satisfy and exceed the requirements of Category 5, Category 5 and Category 6 transmission system standards to achieve higher reliability, with the function of preventing loosening, self-locking and plugging and unplugging.

Specifications Model/ PRODUCT

Product number	product manual	unit	package
HX-UPG-4P2C	RJ11 phone crystal head	A	100PCS / box
HX-UPG-4P4C	RJ11 phone crystal head	A	100PCS / box
HX-UPG-6P4C	RJ11 phone crystal head	A	100PCS / box
HX-UPG-6P6C	RJ11 phone crystal head	A	100PCS / box
HX-UTP5E-8P8C	RJ45 super five non-shielded network crystal head	A	100PCS / box
HX-FTP5E-8P8C	RJ45 ultra-five shielded network crystal head	A	100PCS / box
HX-UTP6-8P8C	RJ45 six unshielded network crystal head	A	100PCS / box
HX-FTP6-8P8C	RJ45 six shielded network crystal head	A	100PCS / box
