Network patch panel

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

Network patch panel

Product Overview/ PRODUCT

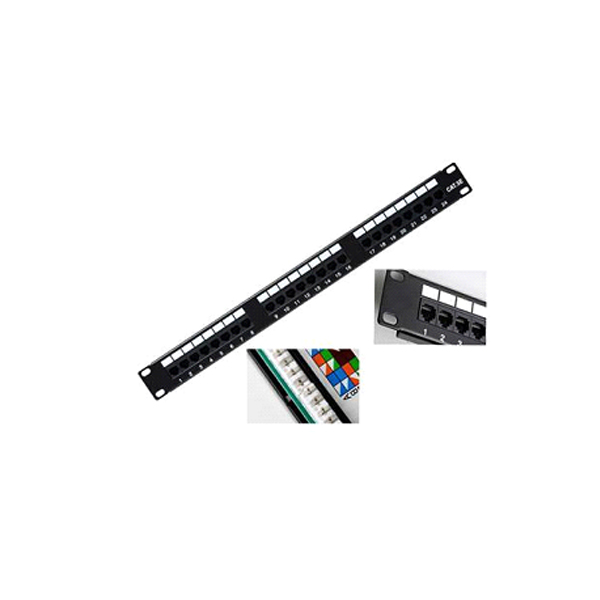

Network patch panel for the level of equipment or equipment wiring between the termination, and the convergence of the end point termination. Rugged and easy to install design, reduce installation and operation costs, large positive identification space for port identification, easy to manage, in line with 19 "rack installation standards.

Product Structure/ PRODUCT

● Metal components: high-quality cold-rolled steel (spray).
● Panel material: PC / ABS UL-94V0.
● RJ45 housing: PBT UL-94V0.
● Inner needle connection: 8P8C, made of phosphor bronze; gold plated: 3U-50U.
● Circuit board material: FR-4UL-94V0.
● Card Reed Material: Phosphor bronze tin.

Performance Indicators/ PRODUCT

● Electrical performance: Operating voltage: 125 V; Withstand voltage: 750 V; 100% FLUKE LINK tested.
● Physical Properties: Insertion force is not greater than 20N, pull-out force of not less than 20N.
● plug and socket plug the number of times: 750 times; the number of terminals plug: 250 times.
● Operating temperature: Temperature: -40 ~ 70 ℃.

Executive Standard / PRODUCT

● TIA / EIA568A / B, ISO / IEC11801, IEC60603, GB50311-2007 super five, six standards.

Product Application / PRODUCT

Applied to communication equipment and other electronic equipment, the line conversion connection to use, product matching with copper cable coaxial cable and copper jumper wire, interworking requirements with the same standard series of interoperability with the use of the connector.

Specifications Model/ PRODUCT

Bending radius	8 times the cable diameter	Bending radius	8 times the cable diameter
Operating temperature	-40 ℃ ~ 70 ℃	Operating temperature	-40 ℃ ~ 70 ℃
Tension load test	25lbs (11.35kg)	Tension load test	25lbs (11.35kg)
Tension	133N	Tension	133N
Insulation voltage	1000VAC	Insulation voltage	1000VAC
Insulation resistance	500Mohms	Insulation resistance	500Mohms
Continuous resistance	20M ohms	Continuous resistance	20M ohms
Bending radius	8 times the cable diameter	Bending radius	8 times the cable diameter
Operating temperature	-40 ℃ ~ 70 ℃	Operating temperature	-40 ℃ ~ 70 ℃
