Stranded loose tube aluminum tape armored cable GYTA |
Stranded loose tube aluminum tape armored cable GYTA
Product Show/ PRODUCT
Copyrights Reserved
Product description/ PRODUCT

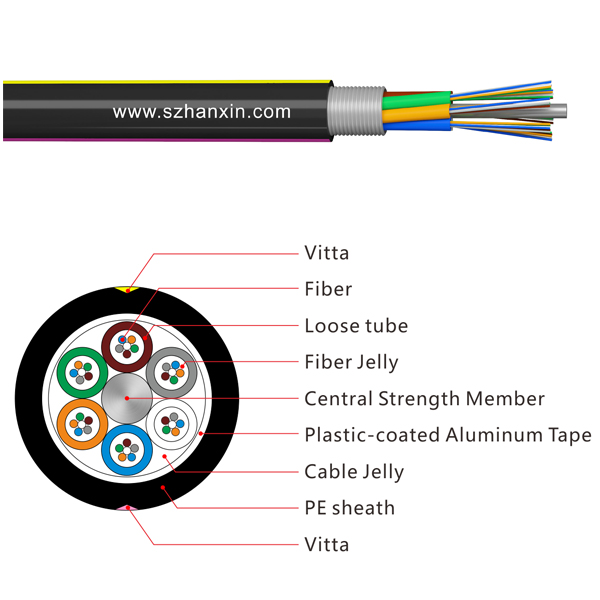

The fibers, 200/250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.

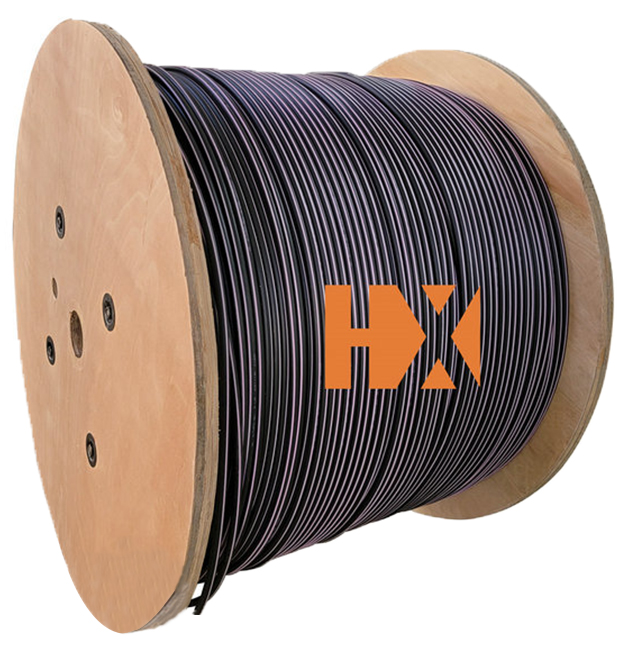

Product Picture/ PRODUCT
Product Features/ PRODUCT
·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Specially designed compact structure is good at preventing loose tubes from shrinking
·PE sheath protects cable from ultraviolet radiation
·To assure the water-proof function by:
·Single steel wire as central strength member
·Special tube filling compound ensure a critical protection of fiber
·Fully filled in the cable
·APL layer
Product Standard / PRODUCT
·GYTA cable complies with Standard YD/T 901-2009 as well as IEC 60794-1.
Optical Characteristics / PRODUCT
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
|
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850 |
|
|
≥500MHZ·km |
≥500MHZ·km |
|
@1300 |
|
|
≥1000MHZ·km |
≥600MHZ·km |
|
|
Numerical Aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelength λcc |
|
≤1260nm |
≤1480nm |
|
|
Technical Parameters / PRODUCT
|
Cable Type |
Fiber Count |
Loose tube count |
Filler count |
Cable Diameter |
Cable Weight Kg/km |
Tensile Strength |
Crush Resistance Long/short term |
Bending Radius Static/dynamic |
|
GYTA-2～6 |
2～6 |
1 |
4 |
9.5 |
90 |
1000/2000 |
300/1000 |
15D/30D |
|
GYTA-8～12 |
8～12 |
2 |
3 |
9.5 |
90 |
1000/2000 |
300/1000 |
15D/30D |
|
GYTA-14～18 |
14～18 |
3 |
2 |
9.5 |
90 |
1000/2000 |
300/1000 |
15D/30D |
|
GYTA-20～24 |
20～24 |
4 |
1 |
9.5 |
90 |
1000/2000 |
300/1000 |
15D/30D |
|
GYTA-26～30 |
26～30 |
5 |
0 |
9.5 |
90 |
1000/2000 |
300/1000 |
15D/30D |
|
GYTA-32～36 |
32～36 |
5 |
0 |
9.5 |
90 |
1000/2000 |
300/1000 |
15D/30D |
|
GYTA-38～48 |
38～48 |
5 |
0 |
9.5 |
90 |
1000/2000 |
300/1000 |
15D/30D |
|
GYTA-50～60 |
50～60 |
5 |
0 |
9.5 |
90 |
1000/2000 |
300/1000 |
15D/30D |
|
GYTA-62～72 |
62～72 |
6 |
0 |
10.0 |
126 |
1750/3500 |
300/1000 |
15D/30D |
|
GYTA-74～84 |
74～84 |
7 |
1 |
11.0 |
145 |
1750/3500 |
300/1000 |
15D/30D |
|
GYTA-86～96 |
86～96 |
8 |
0 |
11.0 |
145 |
1750/3500 |
300/1000 |
15D/30D |
|
GYTA-98～108 |
98～108 |
9 |
1 |
12.5 |
180 |
1750/3500 |
300/1000 |
15D/30D |
|
GYTA-110～120 |
110～120 |
10 |
0 |
12.5 |
180 |
1750/3500 |
300/1000 |
15D/30D |
|
GYTA-122～132 |
122～132 |
11 |
1 |
13.5 |
228 |
1750/3500 |
300/1000 |
15D/30D |
|
GYTA-134～144 |
134～144 |
12 |
0 |
13.5 |
228 |
1750/3500 |
300/1000 |
15D/30D |
|
GYTA-146～216 |
146～216 |
12 |
0 |
13.5 |
228 |
1750/3500 |
300/1000 |
15D/30D |
storage/Operating Temperature : -40℃ to + 70℃
