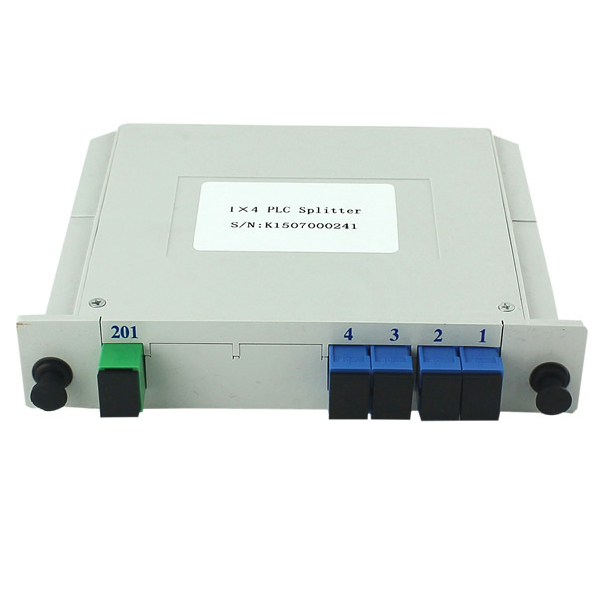

1x4 SC Slot Box Type Splitter
Ø Low insertion loss, Low PDL and High reliability
Ø High return loss and Good repeatability
Ø Wide wavelength range
Ø Excellent channel-to-channel uniformity
Ø LAN, WAN and Metro Networks
Ø FTTH project & FTTX Deployments
Ø CATV System
Ø GPON, EPON
Ø Fiber Optic Test Equipment
Ø Data-base Transmit Broadband Net
|
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
1x128 |
Fiber Type |
G.657.A |
||||||
Working Wavelength |
1260nm~1650nm |
||||||
Standard Insertion Loss(dB) |
≤4.2 |
≤7.6 |
≤10.7 |
≤14.0 |
≤17.2 |
≤20.8 |
≤24.0 |
P-Grade Insertion Loss(dB) |
≤4.0 |
≤7.4 |
≤10.5 |
≤13.8 |
≤17.0 |
≤20.4 |
≤23.7 |
Uniformity(dB) |
≤0.6 |
≤0.8 |
≤0.8 |
≤1.0 |
≤1.5 |
≤2.0 |
≤2.0 |
PDL(dB) |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.4 |
≤0.5 |
Wavelength Dependent Loss(dB) |
≤0.6 |
≤0.8 |
≤0.8 |
≤1.0 |
≤1.5 |
≤2.0 |
≤2.0 |
Return Loss(dB) |
≥50 |
||||||
Directivity(dB) |
≥55 |
||||||
Operating Temp.Gange |
-40℃~+85℃ |
||||||
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB. |
Item |
2x2 |
2x4 |
2x8 |
2x16 |
2x32 |
2x64 |
2x128 |
Fiber Type |
G.657.A |
||||||
Working Wavelength |
1260nm~1650nm |
||||||
Standard Insertion Loss(dB) |
≤4.4 |
≤8.0 |
≤11.0 |
≤14.6 |
≤17.8 |
≤21.0 |
≤24.4 |
P-Grade Insertion Loss(dB) |
≤4.2 |
≤7.7 |
≤10.8 |
≤14.1 |
≤17.4 |
≤20.7 |
≤24.0 |
Uniformity(dB) |
≤0.8 |
≤1.0 |
≤1.2 |
≤1.5 |
≤1.8 |
≤2.0 |
≤3.0 |
PDL(dB) |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.4 |
≤0.5 |
Wavelength Dependent Loss(dB) |
≤0.8 |
≤1.0 |
≤1.2 |
≤1.5 |
≤1.8 |
≤2.0 |
≤3.0 |
Return Loss(dB) |
≥50 |
||||||
Directivity(dB) |
≥55 |
||||||
Operating Temp.Gange |
-40℃~+85℃ |
||||||
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB. |
