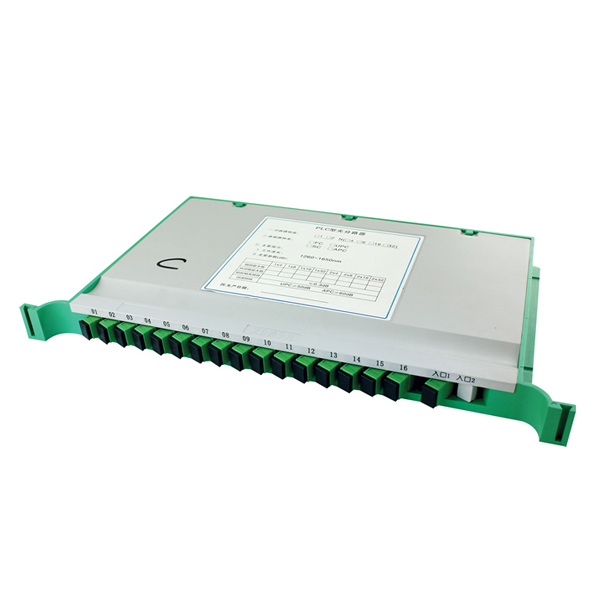

1x16 SC Tray Type Splitter

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

Features / PRODUCT

Ø Low insertion loss, Low PDL and High reliability
Ø High return loss and Good repeatability
Ø Wide wavelength range
Ø Excellent channel-to-channel uniformity

Applications / PRODUCT

Ø LAN, WAN and Metro Networks
Ø FTTH project & FTTX Deployments
Ø CATV System
Ø GPON, EPON
Ø Fiber Optic Test Equipment
Ø Data-base Transmit Broadband Net

Technical Specifications / PRODUCT

Item	1x2	1x4	1x8	1x16	1x32	1x64	1x128
Fiber Type	G.657.A
Working Wavelength	1260nm~1650nm
Standard Insertion Loss(dB)	≤4.2	≤7.6	≤10.7	≤14.0	≤17.2	≤20.8	≤24.0
P-Grade Insertion Loss(dB)	≤4.0	≤7.4	≤10.5	≤13.8	≤17.0	≤20.4	≤23.7
Uniformity(dB)	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
PDL(dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Wavelength Dependent Loss(dB)	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
Return Loss(dB)	≥50
Directivity(dB)	≥55
Operating Temp.Gange	-40℃~+85℃
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.

Item	2x2	2x4	2x8	2x16	2x32	2x64	2x128
Fiber Type	G.657.A
Working Wavelength	1260nm~1650nm
Standard Insertion Loss(dB)	≤4.4	≤8.0	≤11.0	≤14.6	≤17.8	≤21.0	≤24.4
P-Grade Insertion Loss(dB)	≤4.2	≤7.7	≤10.8	≤14.1	≤17.4	≤20.7	≤24.0
Uniformity(dB)	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8	≤2.0	≤3.0
PDL(dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Wavelength Dependent Loss(dB)	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8	≤2.0	≤3.0
Return Loss(dB)	≥50
Directivity(dB)	≥55
Operating Temp.Gange	-40℃~+85℃
Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB.

Technical Specifications / PRODUCT

Item	Type of Connector	LengthWidthHeight(mm)
1x8	SC/LC	34419425
1x16	SC/LC	34419425
1x32	SC	34419450
1x32	LC	34419425
