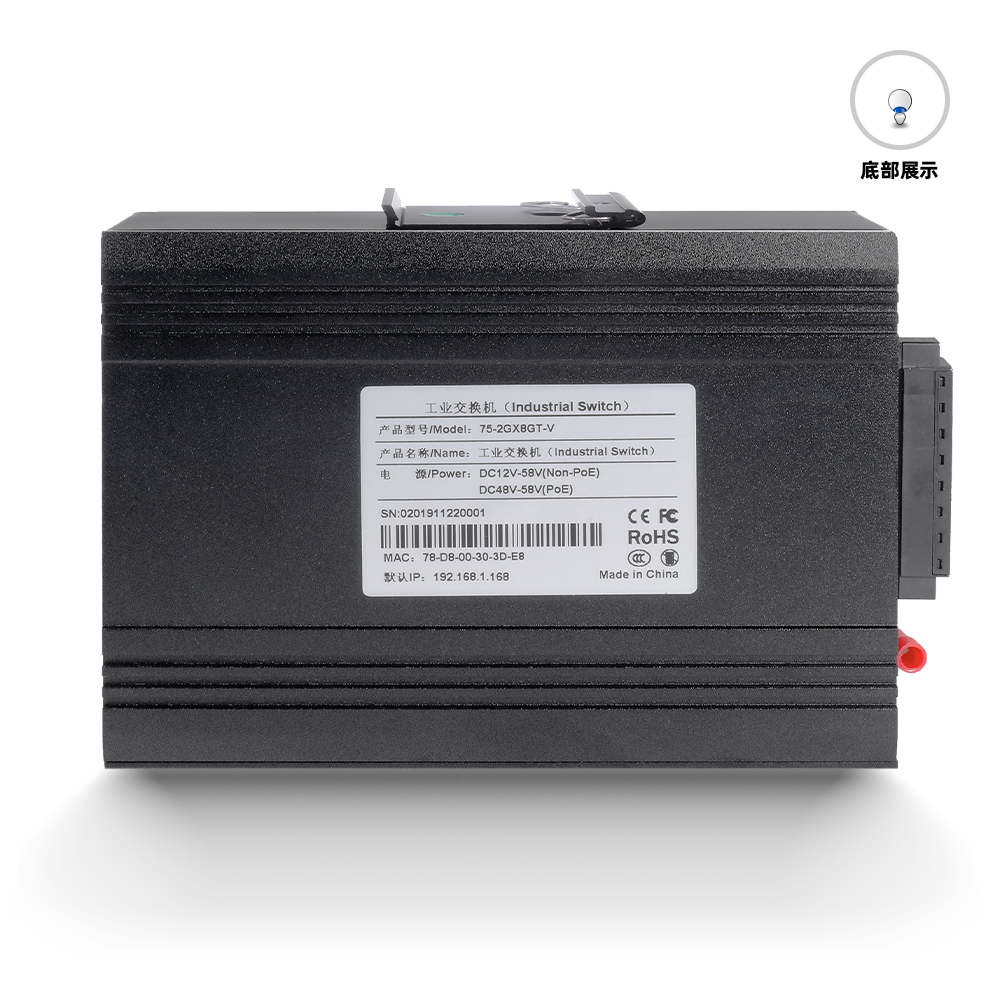

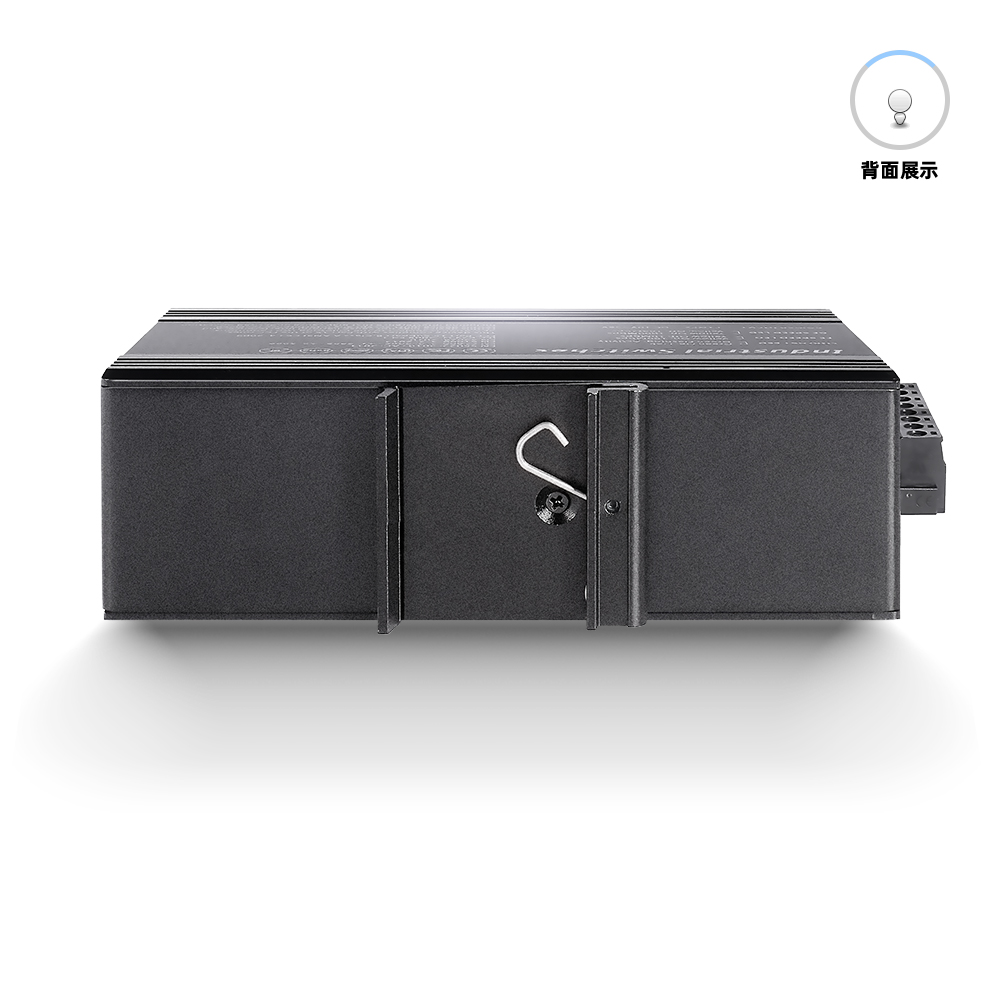

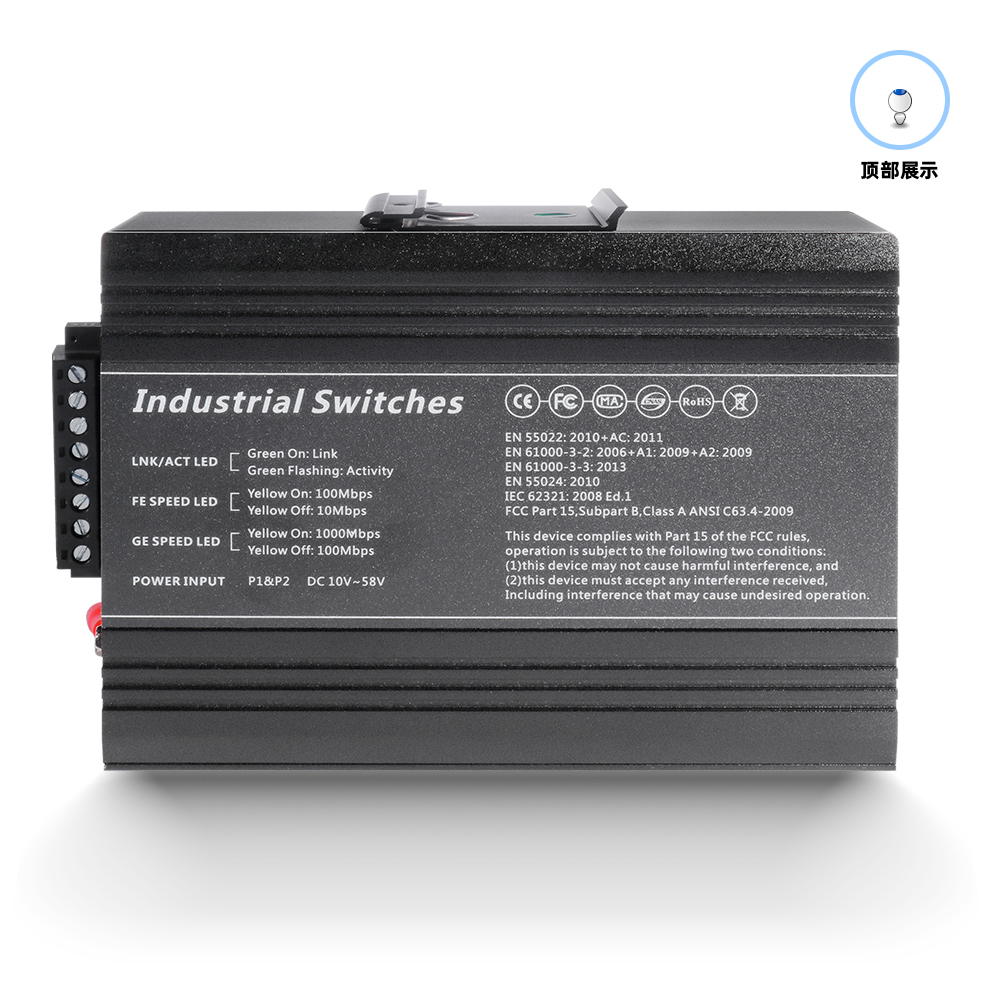

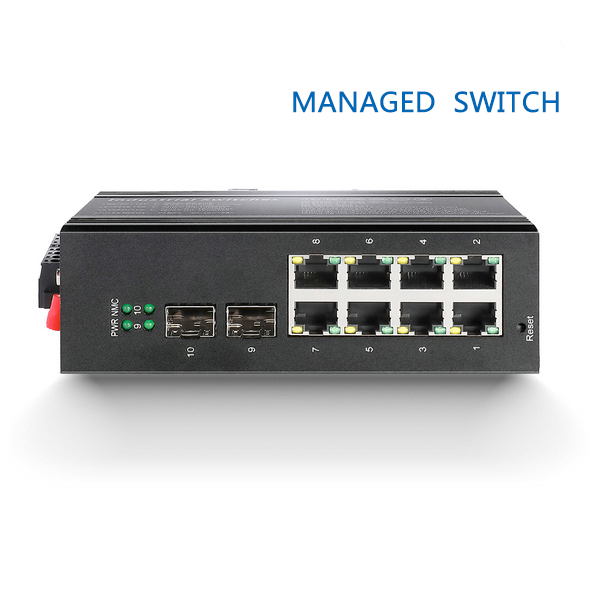

Product Show/ PRODUCT
Copyrights Reserved
Product description/ PRODUCT
The equipment is 2*1000 Base-X, 8*10/100/1000 Base-T Managed Industrial Ethernet fast switch, through the fan cooling circuit design, wide range working environment temperature, high protection level and other technologies, provide high / low temperature, lightning protection and other outstanding industrial quality, and integrated switching, safety and various rich protocols, simultaneously supported The public Ethernet multi ring protection technology (ERPS) has greatly enhanced the flexibility of the network and enhanced the reliability and security of the industrial network. It can meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.

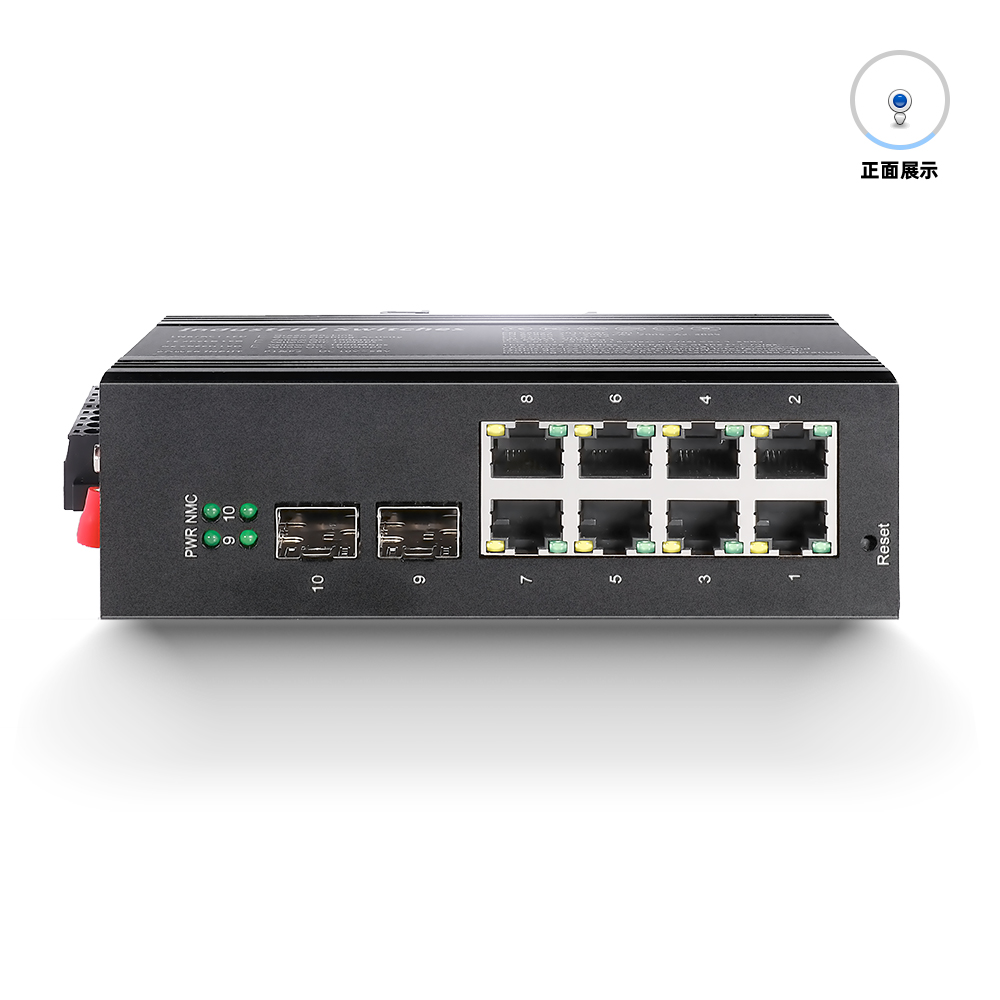

Product Show/ PRODUCT

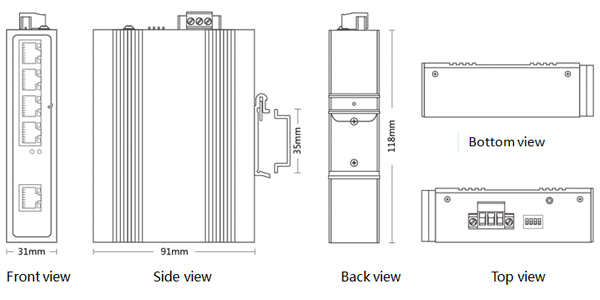

Product Size/ PRODUCT
Main features / PRODUCT
Input Voltage: DC12~58V
Operating Temperature: -40℃ ~ +75℃
Shell: IP40 protection, fanless design
Test Report: CCC, RoHS, FCC, CE
Anti-static: 8KV-15KV
MTBF: 100000 Hours
Product Parameters/ PRODUCT
|
|
|
|
Provider Mode Ports |
|
|
Fixed port |
2*1000 Base-X， 8*10/100/1000 Base-T |
|
Management Port |
Support Console |
|

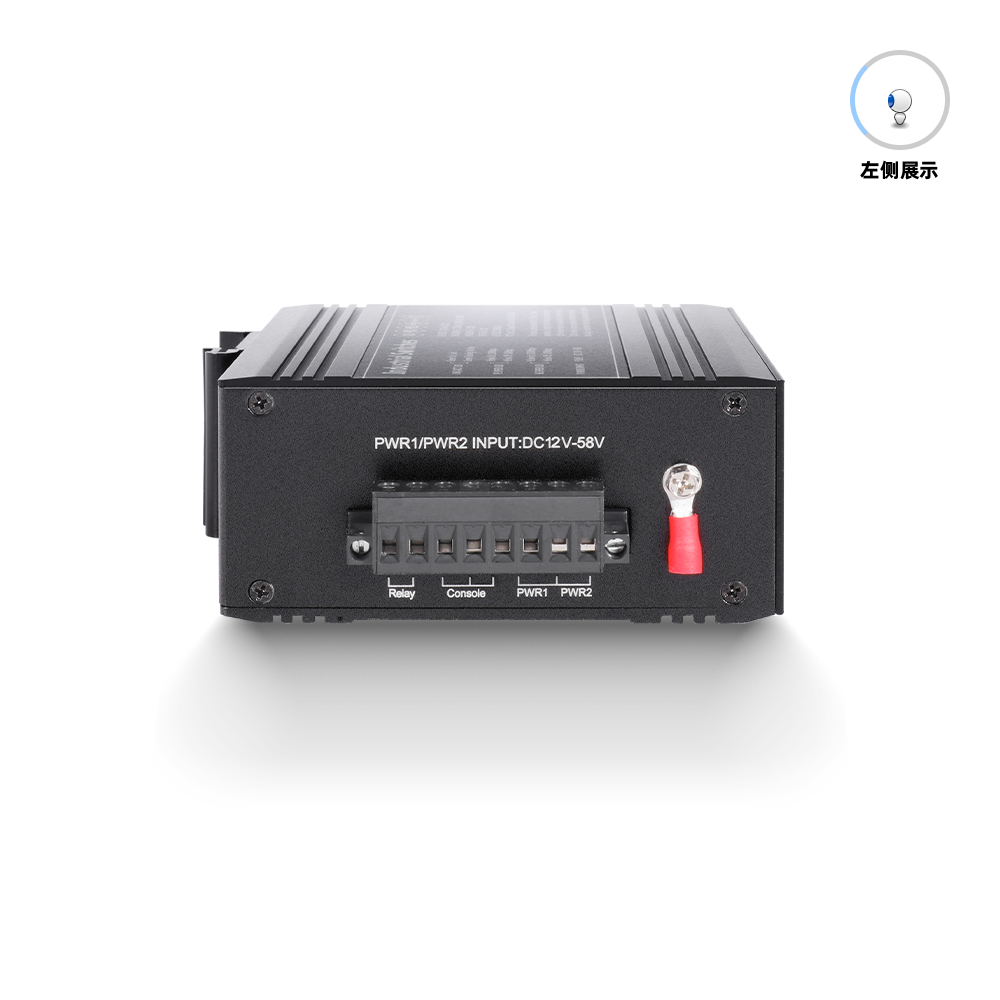

Power interface |
Phoenix terminal, redundant dual |
|
LED Indicators |
PWR，Link/ACT LED |
|
|
|
|
Cable type&Transmission distance |
|
|
Twisted-pair |
0-100m（CAT5e,CAT6） |
|
Monomode optical fiber |
20/40/60/80/100KM |
|
Multimode optical fibre |
550m |
|
|
|
|
Network Topology |
|
|
Ring topology |
Support |
|
Star topology |
Support |
|
Bus topology |
Support |
|
Tree Topology |
Support |
|
Hybrid topology |
Support |
|
|
|
|
Electrical Specifications |
|
|
Input voltage |
DC12~58V |
|
Total Power consumption |
<10W |
|
|
|
|
Layer 2 Switching |
|
|
Switching capacity |
36G |
|
Packet forwarding rate |
26.78Mpps |
|
MAC address table |
16K |
|
VLAN |
Support 4K |
|
Buffer |
8M |
|
Forwarding delay |
<10us |
|
MDX/MIDX |
Support |
|
Flow control |
Support |
|
Jumbo Frame |
Support 10Kbytes |
|
Spanning Tree |
Support STP/RSTP/MSTP |
|
Ring Protocol |
Support ERPS |
|
Link Aggregation |
Support 12 group |
|
Multicast |
Support IGMP Snooping |
|
Port Mirroring |
Support |
|
Storm Control |
Support |
|
Interface Counters |
Support |
|
QINQ |
Support |
|
802.1X |
Support |
|
MAC Authentication |
Support |
|
Port Isolation |
Support |
|
Dying gasp |
Support |
|
DHCP CLIENT |
Support |
|
PING/TRACEROUT |
Support |
|
DDM |
Support |
|
|
|
|
Convergence |
|
|
ACL |
Support ACL 500 |
|
QoS |
Support QoS re-marking, priority mapping |
|
|
|
|
Management |
|
|
CLI |
Support |
|
Console |
Support |
|
Telnet |
Support |
|
WEB management |
Support |
|
SNMP |
Support SNMPv1/v2c/v3 |
|
User Management |
Support |
|
System Log |
Support |
|
Configuration File Download/Upload |
Support |
|
Upgrade Firmware |
Support |
|
|
|
|
Environment |
|
|
Operating temperature |
-40℃~+75℃ |
|
Storage temperature |
-40℃~+85℃ |
|
Relative humidity |
5%~95% （non-condensing） |
|
Thermal methods |
Fanless, natural cooling |
|
MTBF |
100,000 hours |
|
|
|
|
Mechanical Dimensions |
|
|
Product size |
143X104X48mm |
|
Installation Method |
DIN-rail |
|
Weight |
0.58KG |
|
|
|
|
EMC&INGRESS PROTECTION |
|
|
IP Level |
IP40 |
|
Surge protection of Power |
IEC 61000-4-5 Level X（6KV/6KV）（8/20us） |
|
Surge protection of Ethernet port |
IEC 61000-4-5 Level 4（4KV/4KV）（10/700us） |
|
RS |
IEC 61000-4-3 Level 3（10V/m） |
|
EFI |
IEC 61000-4-4 Level 3（1V/2V） |
|
CS |
IEC 61000-4-6 Level 3（10V/m） |
|
PFMF |
IEC 61000-4-8 Level 4（30A/m） |
|
DIP |
IEC 61000-4-11 Level 3（10V） |
|
EMI |
CLASS A |
|
ESD |
IEC 61000-4-2 Level 4（8K/15K） |
|
Free fall |
0.5m |
|
|
|
|
Authentication |
|
|
Authentication |
CCC/CE/FCC/RoHS |
|
|
|
|
Accessories |
|
|
Accessories |
Device, Terminals, Specification, Certificate |
|
|
|
|
Optional Model |
|
|
XPTN-9000-75-2GX8GP-V |
2*1000Mbps SFP Ports, |
