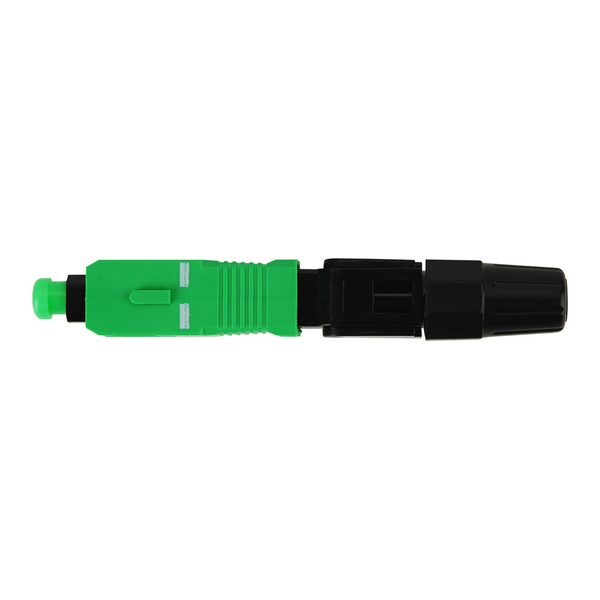

optical fast connector Y01

Comply with international standards:
1.ITU-T and IEC and China standards:
2.《YDT 2341.1-2011 Field Assembled Optical Fiber Active Connector
Part 1: Mechanical Type》
3.《China Telecom fast Connector Standard [2010] No. 953》
4.《01C GR-326-CORE (Issue 3, 1999) General requirements for
single-mode optical connectors and jumpers》
5.《YD/T 1636-2007 Fiber to the Home (FTTH) Architecture and General
Requirements》 Fiber Optic Cable Connector Part 4: Sectional Specification
Optical Fiber Optical Cable Mechanical Connector

1.Applied to open FTTH fiber terminal

2.Used in closure boxes, cabinets, teminal boxes, etc.

3.Recovery and maintenance in fiber breakage and other accidents

4.LAN, WAN, data and video transmission

5.Construction and maintenance of fiber access for end users

6.Fiber entry for mobile base stations

FTTH Drop Cable 3×2.0mm ; Indoor 3.0mm cable
Expand to 1.2，1.6，0.9 mm diameter cable and 250um fiber

Optical Fast Connector Optical Performance (Reference to China Standard Q/CT 2299-2010-6.1)						Unit( dB)
Code	Test Item	Mechanical Q/CT 2299-2010-Chapter6.1		Fusion Splicer Type YD/T 2341.2-2011-Chapter 4.7
		Average Value	Maximum Value	Average Value	Maximum Value
a	Insertion Loss	≤0.3	Tested with standard plugs and adapters：≤0.5 Test with any plug and adapter：≤0.7	≤0.25	Tested with standard plugs and adapters：≤0.4 Test with any plug and adapter：≤0.7
b	Return Loss	≥40（UPC）；≥55（APC）		≥50（UPC）；≥60（APC）
Mark1： IL and RL Test at 1310nm. If need test 1550nm, Please tell us first. Mark2：IL and RL average and Maximum vale make as customer’s requirement. Mark3：Return Loss can customized UPC standard -45~-50dB；APC Standard -55~-60dB

Optical Fast Connector mechanical character (Reference to standard Q/CT 2299-2010-6.3）						Unit( dB)
ITEM	Tet Name	Test conditions	Judgement Standard
			Insertion Loss Variation		Test Result
			Mechanical	Fusion Splicer	Test Result
a	Repeatable Assemblability	Assemblability Times： 5 Times	≤0.3	No Requirement	No mechanical damage, no obvious scratches on the pin surface
b	vibration	frequency： 10-50Hz Sweep frequency：45 Times per minute Amplitude： 0.75mm Single Amplitude Time：Three director ,each 2 hours	≤0.3	≤0.25	No mechanical damage, such as deformation, cracking, slack, etc.
c	Drop	Height：1.5meter from sample head Test times： 8 Times	≤0.3	≤0.25	No mechanical damage, such as deformation, cracking, slack, etc
d	Repeat Plug	Plug Times： 10	≤0.3	≤0.25	No mechanical damage, such as deformation, cracking, slack, etc
e	mechanical Durability	Plug Times： 500	≤0.3	≤0.25	No mechanical damage, such as deformation, cracking, slack, etc
f	Tensile	Telcom Standard Q/CT 2299-2010-7.14： 0.125mm bare fiber: 4N， No online monitoring of Optical performance； 0.25mm fiber type :4N No online monitoring of Optical performance； 0.9mm fiber type :10N online monitoring of Optical performance； Fiber optic cable :20N online monitoring of Optical performance； Fiber optic cable :30N No online monitoring of Optical performance；； Time：2 Minute	≤0.3	≤0.25	No mechanical damage, such as deformation, cracking, slack, etc
j	Tensile	Communication Standard YD/TT 2341.1-2011-5.15 Load weight:250μm fiber: 4N 900μmFiber : 10N Fiber optic cable 2.0mm and drop cable :20N Fiber optic cable 3.0mm: 50N; Load Time: fiber 30s，fiber optic cable 2min; Load rate: 50N/min The distance between the load point and the mechanical field connector: L=22cm~28cm	≤0.3	≤0.20	No mechanical damage, such as deformation, cracking, slack, et
g	Twist	Load Weight：Fiber Optic cabel 15N Rate： 10 Times/Minute times： 200Times	≤0.3	≤0.25	No mechanical damage, such as deformation, cracking, slack, et
Mark 1： Fusion Splicer type can not be repeatable assembly test； Mark 2：Repeat assembly testing is Mainly assess the deterioration of the amount of insertion loss. It requirment insersion loss deterioration ≤0.3. If insersion loss become better,then it is qualified ； Mark 3：After Test, Return Loss Variation≤5dB

Item
a	Operating temperature	-40℃ ～+85℃
b	Storage temperature	-40℃ ～+85℃
c	Relative humidity	≤95％（+30℃ hours）
d	Atmospheric pressure	62kPa～106kPa

Non-corrosive materialand, no other harmful effects on human health and other equipment/facilities
/cooperating parts

All parts of this products material is preservative

There have two package way :

10 Pics put in one Plastic boxes. Then Plastic boxes put in one out carton.

Each pic put in one plastic bag, then plastic bag put in one out carton

Transportation need avoid collision, fall, rain (snow) or sun exposure

well-ventilated, dry, non-corrosive gas or sunlight warehouse,
Indoor temperature is -25℃～+55℃

12 months quality guarantee. During quality guarantee period,replace defective
products excep tmanual damage .
