HX-1GE+WIFI EPON ONU

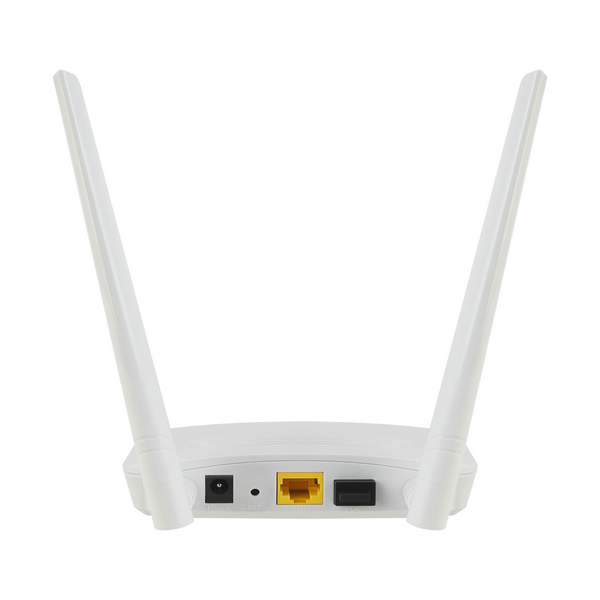

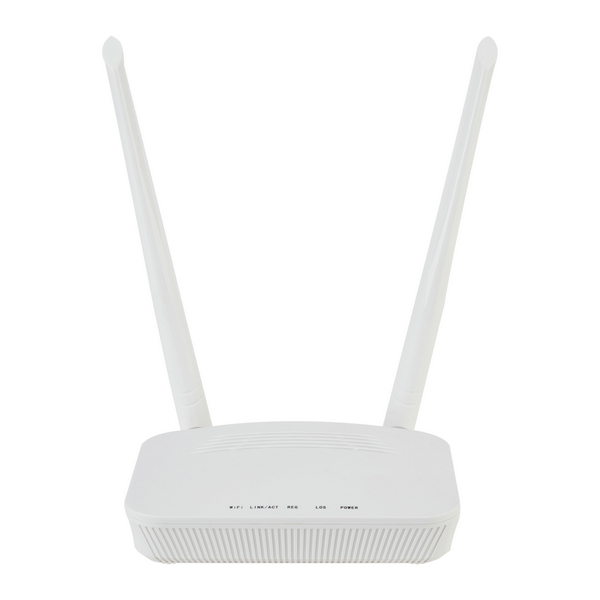

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

HX-1GE+WIFI terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. It based on the mature Gigabit EPON technology, which have high ratio of performance to price, and the technology of 802.11n WiFi (2T2R), Layer 2/3. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And fully compliant with technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment from China Telecom.

Product Show/ PRODUCT

Product Features / PRODUCT

Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.

Integrated OAM remote configuration and maintenance function.

Support rich QinQ VLAN functions and IGMP Snooping multicast features.

Functions like transceiver diagnostic monitoring, transmitter disable, etc.

Fully compatibility with OLT based on popular chipset.

Support NAT, Firewall function.

Integrated 802.11b/g/n, 300Mbp

Product standard/ PRODUCT

EPON IEEE802.3ah

Technical Parameters / PRODUCT

Main Chipset	Popular model in Market
Upstream PON interface	1 EPON interface, SC single-mode/single-fibre, symmetric 1.25 Gbps
Wavelength	Tx 1310nm, Rx 1490nm
Optical interface	SC connector
Downstream LAN interface	1 10/100/1000Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors
WLAN	Compliant with IEEE802.11b/g/n, 2R2T, 300Mbps, One internal antenna and one external antenna
Indicators	5 indicators, for status of power supply, PON port and 1 Giga-Ethernet port.
DC power supply	+12V, external AC-DC power adaptor
Power switch	1
Power consumption	≤3W
Operating condition	Operating temp: -5~+55℃
Operating condition	Operating humidity:10~90%(non-condensed)
Storing condition	Storing temp: -30~+60℃
Storing condition	Storing humidity:10~90%(non-condensed)
Dimension	120mm78mm28mm(lengthwidthheight)
Net weight	0.25Kg
