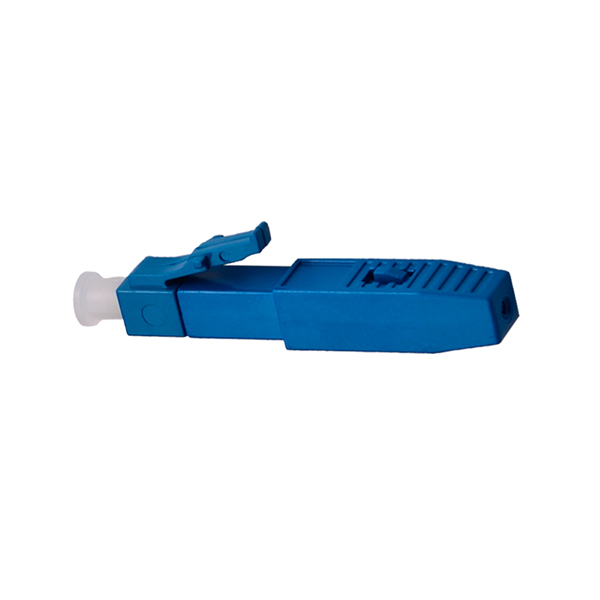

optical fast connector for flat cable K13

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

The Fast Connector is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

Product description/ PRODUCT

The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

Feature / PRODUCT

●Low insertion loss ,high return loss;
●Reliable optical performance;
●Convenient for field installation;
●Installs fast,Operates easy ;
●Low cost.

Technical Parameter/ PRODUCT

Item

Parameter

Cable Scope

3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable

Size

51*9*7.55mm

Coating Diameter

250μm

Mode

SM

Operation Time

about 15s(exclude fiber presetting)

Insertion Loss

≤ 0.3dB(1310nm & 1550nm)

Return Loss

≤ -50dB for UPC, ≤ 55dB for APC

Success Rate

>98%

Reusable Times

>5 times

Tighten Strength of Naked Fiber

>5 N

Tensile Strength

>30 N

Temperature

-40 ~ +85 C

On-line Tensile Strength Test (20 N)

IL ≤ 0.3dB

Mechanical Durability(500 times)

IL ≤ 0.3dB

Drop Test

IL ≤ 0.3dB
