FTTH Cable GJYXFCH(V) FRP

FTTH FRP drop cable GJYXFCH

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

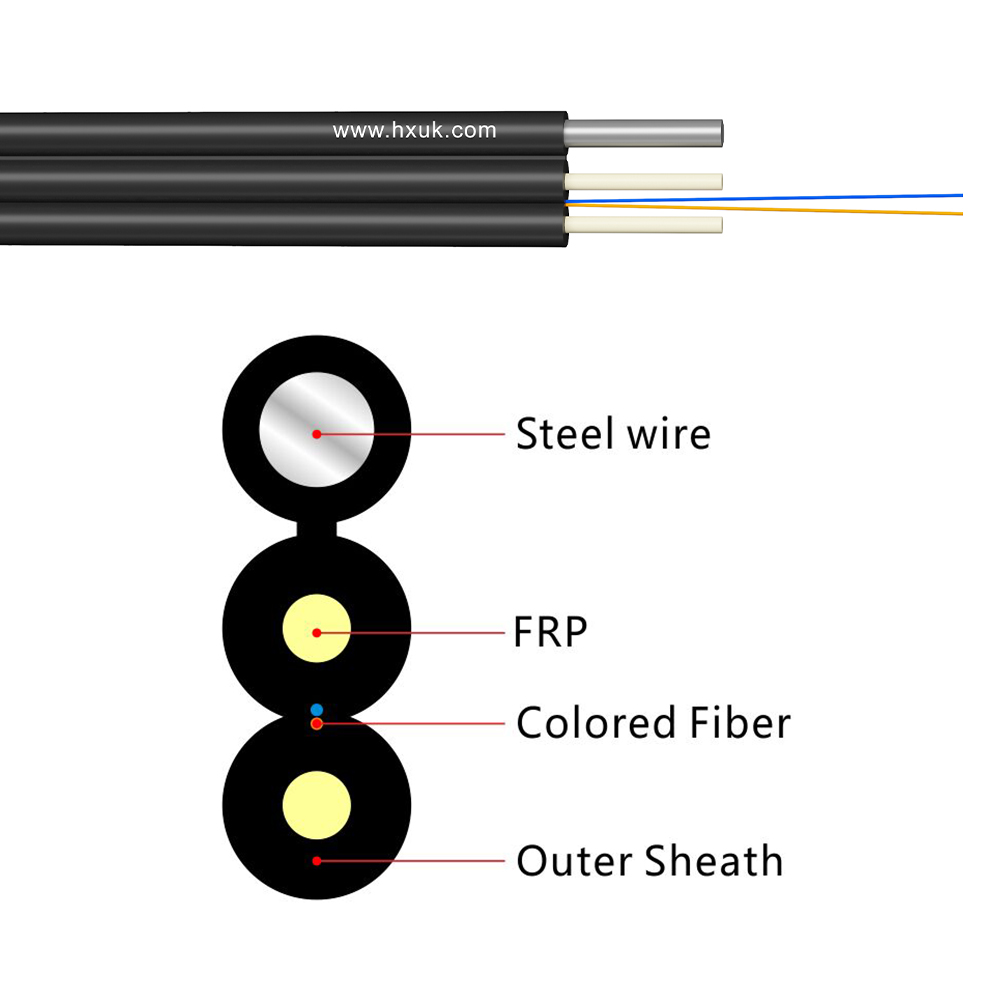

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP/KFRP/STEEL) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or colored LSZH sheath.

Product Description/ PRODUCT

Product Export Containers/ PRODUCT

Daily export 6 containers

Characteristics/ PRODUCT

· Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
transmission property;
· Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
· Single steel wire or messenger as the additional strength member ensures good performance of tensile strength;
· Simple structure, light weight and high practicability;
· Novel flute design, easily strip and splice, simplify the installation and maintenance;
· Low smoke, zero halogen and flame retardant sheath.

Optical Characteristics/ PRODUCT

G.652	G.657	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.5 dB/km	≤3.5 dB/km
	@1300nm			≤1.5 dB/km	≤1.5 dB/km
	@1310nm	≤0.40 dB/km	≤0.40 dB/km
	@1550nm	≤0.30 dB/km	≤0.30dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥500 MHz·km	≥500 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1260nm

Technical Parameters/ PRODUCT

Fiber count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long /Short Term N	Crush Resistance Long /Short Term N/100mm	Bending Radius Static /Dynamic mm
1	(2.0±0.)×(5.0±0.2)	20	300/600	1000/2200	20/40
2	(2.0±0.2)×(5.0±0.2)	20	300/600	1000/2200	20/40
4	(2.0±0.2)×(5.0±0.2)	20	300/600	1000/2200	20/40
6	(2.5±0.2)×(6.0±0.2)	24	300/600	1000/2200	20/40
8	(2.5±0.2)×(6.0±0.2)	24	300/600	1000/2200	20/40
12	(2.0±0.)×(5.0±0.2)	20	300/600	1000/2200	20/40

Storage/Operating Temperature : -20℃ to + 60℃
