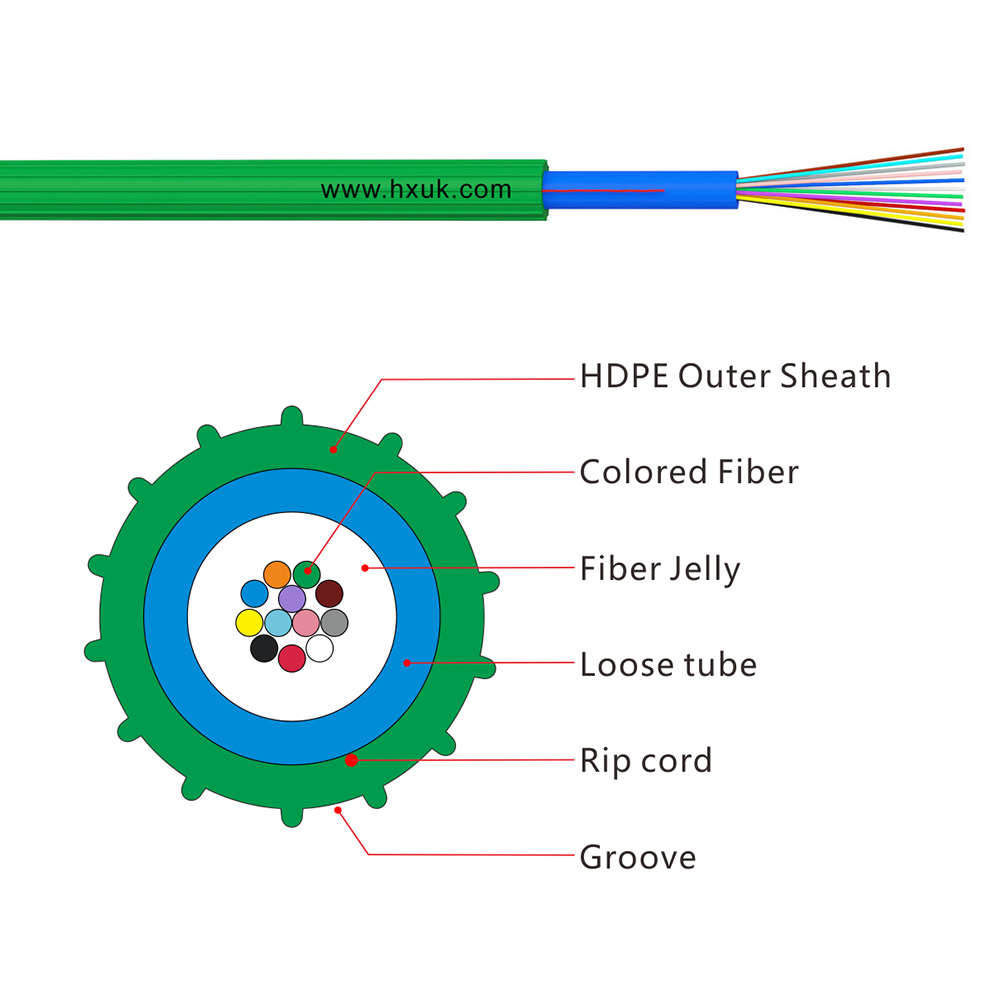

MINI central loose tube air blowing optical cable GCYFXY is made of 2 – 24 cores 250μm colored fibers embedded in the internally filled waterproof compound loose tube made of high-modulus plastic, and a rip cord is placed on outer layer, and then the high-density polyethylene is extruded to form an HDPE sheath.
Special composite loose tube material reducing the shrinkage of tube under low temperature;
Accurately controlling the residual length of optical fiber ensures good tensile properties and temperature characteristics of optical cable;
Unique process control to prevent the sheath from wrinkling during air blowing;
High-density polyethylene outer sheath to increase the air blowing distance;
Sheath structure innovation to enhance blowing performance;
Small diameter, light weight, easy to lay;
Special tube filling compound ensure a critical protection of fiber;
IEC 60794-5、IEC 60794-1-2 or YD/T 1460-2006
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
Attenuation |
@850nm |
- |
- |
≤3.0dB/km |
≤3.0dB/km |
@1300nm |
- |
- |
≤1.0dB/km |
≤1.0dB/km |
|
@1310nm |
≤0.36dB/km |
≤0.36dB/km |
- |
- |
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
- |
- |
|
|
@850 |
- |
- |
≥500MHZ·km |
≥200MHZ·km |
Bandwidth |
@1300 |
- |
- |
≥1000MHZ·km |
≥600MHZ·km |
Numerical aperture |
- |
- |
- |
0.200±0.015NA |
0.275±0.015NA |
Cable Cutoff Wavelength |
- |
≤1260nm |
≤1480nm |
- |
- |
Model |
GCYFXY |
||||
MTE1.8 |
MTE2.0 |
MTE2.3 |
MTE2.5 |
MTE2.8 |
|
Fiber count |
2~4 |
2~4 |
6~12 |
2~12 |
14~24 |
HDPE Outer sheath thickness |
Nominal:0.20mm,smallest: 0.15mm |
||||
Nominal outer diameter |
1.8mm |
2.0mm |
2.3mm |
2.5mm |
2.8mm |
Approximate weight |
2.6 kg/km |
4.0 kg/km |
5.0 kg/km |
6.0 kg/km |
7.0kg/km |
Optical cable attenuation (single-mode fiber) |
1310nm/1550nm≤0.35/0.22dB/km |
||||
Maximum Tensile Strength |
40N |
40N |
50N |
60N |
60N |
Crush Resistance |
600N/100mm |
||||
Bending Radius |
10D/20D |
||||
Storage/Operating Temperature |
-30~+60℃/ -20~+50℃ |
||||
Cable life (estimated) |
25Years |
Blowing machine |
PLUMETTAZ PR-196 or PR-140 |
||
|
Fiber count |
Microtube model |
Microtube model |
2~12 |
Blowing distance |
Blowing distance |
|
14~24 |
Blowing distance |
Blowing distance |
