Stranded multi loose tube Nylon sheathed micro optical cable(24-288cores)GCYF

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

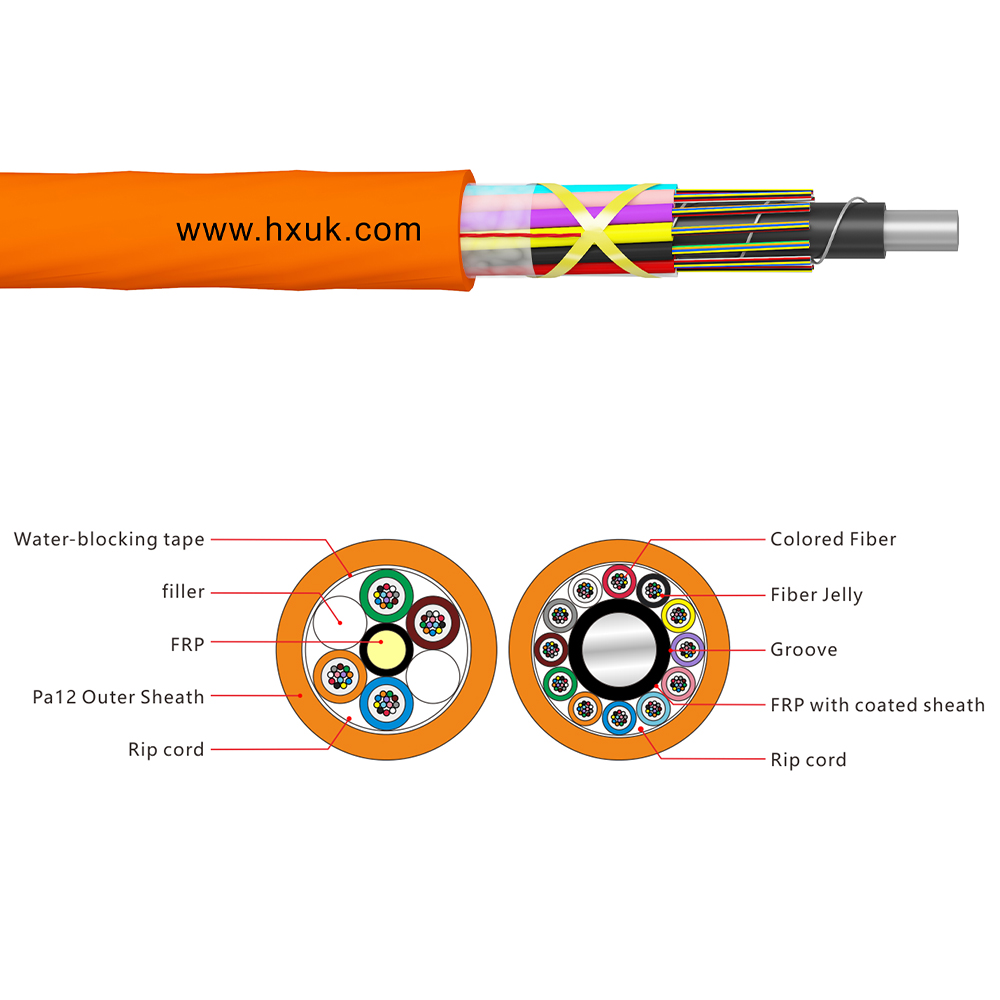

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The loose tube ( and filling rope ) is twisted around the non-metallic center reinforcing core ( FRP ) to synthesize a compact cable core and then a water-blocking layer longitudinally wrapped by the cable core. A rip cord is placed on outer layer, and then the PA12 Nylon outer sheath is extruded.

Product Features/ PRODUCT

Optimized structure design, with the best fiber capacity rate;
Dry-type cable core water blocking, low carbon and environmental protection;
Innovative design of sheath surface to enhance air blowing performance;
Loose tube material itself has a good water resistance and high strength;
special tube filling compound ensure a critical protection of fiber;
Using dry type of water blocking material, the whole section of water resistance,to prevent the optical cable vertical seepage;
Accurately controlling the residual length of optical fiber ensures good tensile properties and temperature characteristics of optical cable ;
Fiber optic cable is non-metallic structure and small diameter, light weight, easy laying, anti-electromagnetic, lightning protection effect is better ;

Product Standards/ PRODUCT

IEC 60794-5、IEC 60794-1-2 or YD/T 1460-2006

Optical Characteristics / PRODUCT





G.652

G.655

50/125μm

62.5/125μm


Attenuation
        (+20℃)

@850nm

 -

  -

≤3.0dB/km

≤3.0dB/km

@1300nm

  -

  -

≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

≤0.36dB/km

  -

  -

@1550nm

≤0.22dB/km

≤0.23dB/km

 -

  -



@850

 -

 -

≥500MHZ·km

≥200MHZ·km

Bandwidth
      (Class A)

@1300

  -

  -

≥1000MHZ·km

≥600MHZ·km

Numerical aperture

 -

  -

  -

0.200±0.015NA

0.275±0.015NA


Cable Cutoff Wavelength

 -

≤1260nm

≤1480nm

  -

 -

Technical Parameter/ PRODUCT

Model

GCYF

Fiber count

24

36

48

60

72

96

144

216

288

Number of loose tubes

2

3

4

5

6

8

12

18

24

Number of fillers

4

3

2

1

0

0

0

0

0

Maximum fiber amount per loose tube

12

Water blocking method

FRP or PE cushion

Water blocking layer

Cable core surface

Water blocking aramid yarn

PA12 Outer sheath thickness

Nominal: 0.45mm,  smallest: 0.35mm

Nominal outer diameter

5.5 mm

6.3 mm

7.8 mm

7.8mm

9.3mm

Approximate weight

27 kg/km

40 kg/km

55 kg/km

55 kg/km

78 kg/km

Maximum Tensile Strength

500N

1000N

1000N

500N

1000N

Crush Resistance
 Long/Short Term

800N/100mm

Bending Radius
      Static/Dynamic

12D / 20D

Optical cable attenuation (single-mode fiber)

1310nm/1550nm≤0.35/0.22dB/km

Storage/Operating Temperature

 -40~+70℃/ -40~+70℃

Cable life (estimated)

25Years

Air blowing performance/ PRODUCT


Blowing machine

PLUMETTAZ PR-140, MiniJet-400

Blowing pressure (bar):15bar

Fiber count

Microtube model
8.0/10.0mm

Microtube model
10.0/12.0mm

Microtube model
12.0/14.0mm

24~72

2000m

2500m

/

96

2000m

2500m

/

144

/

1800m

2500m

216

/

1500m

2000m

288

/

/

2000m

Customer evaluation/ PRODUCT
