GJFJBH duplex fiber

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

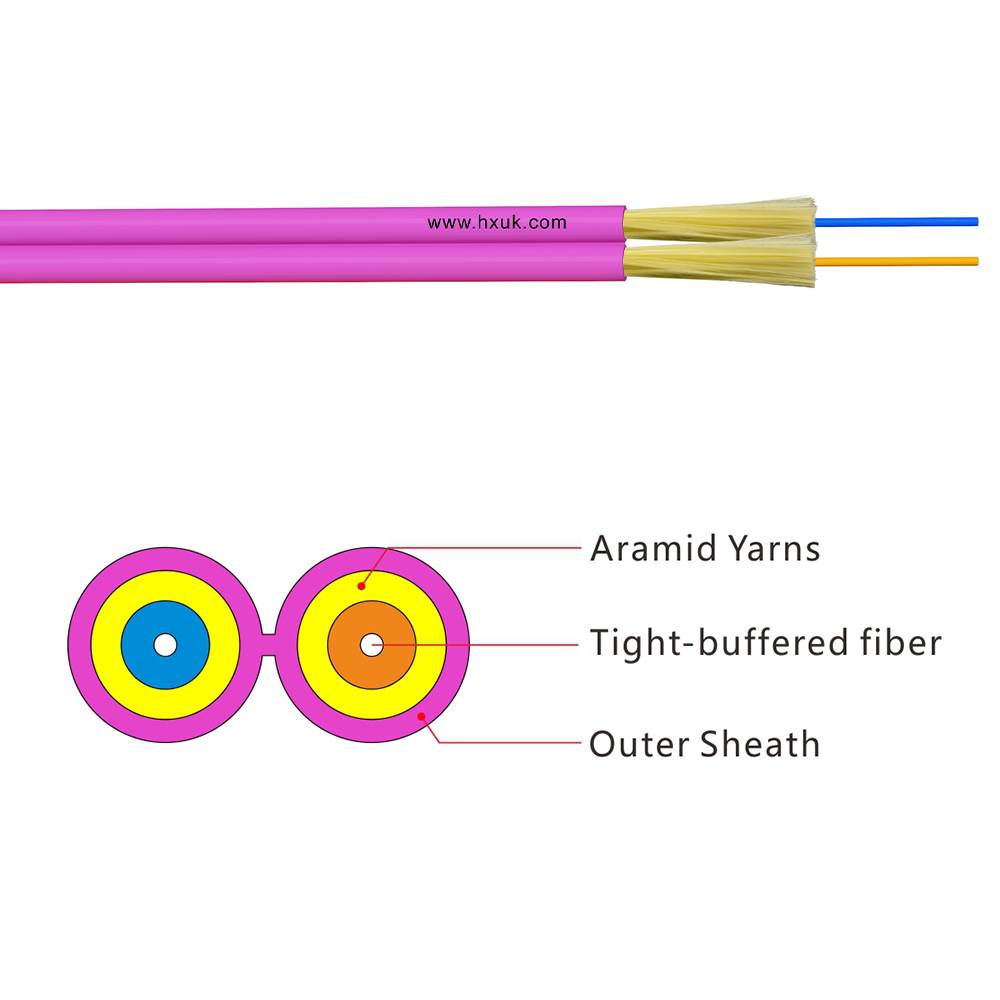

GJFJBV/H duplex fiber cable is made by ф900μm or ф600μm tight-buffered fiber as the basic unit, the Aramid yarn or high-strength glass yarn as strength member is evenly distributed outside the tight-buffered unit, and then it is completed with PVC or LSZH outer jacket.

GJFJBV/H is used for the connection of communication equipment. The ф900μm or ф600μm tight-buffered fiber is easy to strip, and Aramid yarn as strength member makes cable have excellent tensile strength.All dielectricstructure protects it from electromagnetic influence.

Products Features/ PRODUCT

·High strength Kevlar yarn member.
·Good uniformity of the outer diameter of tight buffer fiber and excellent strippability.
·Exterior jacket material: corrosion resistance, waterproof, UV resistant, flame retardant, etc.
·Steady performance both in extremely high and low temperature.
·Excellent geometrical dimension of the fiber.

Products Application/ PRODUCT

·Data Communication.
·Making connector.
·Located in where waterproofisn't strictly required.
·Patch cord, Pigtail & Indoor distribution.

Products Standard/ PRODUCT

GJFJBV/H Duplex fiber cable complies with Standard YD/T 1258.2-2009、ICEA-596、GR-409、IEC794etc; and meets with the requirements of UL approval for OFNR and OFNP.

Cable Code/ PRODUCT


DXC-I

DXC-II

DXC-Ⅲ

Cable Diameter

1.6x3.3mm

2.0x4.1mm

3.0*6.1mm

Cable Weight

6.5kg/km

9kg/km

15.5kg/km

Tight Buffer Fiber Diameter

600±50μm

900±50μm

900±50μm

Mechanical Characteristics/ PRODUCT

Tensile Strength

Long Term

60N

80N

120N

Short Term

120N

150N

250N

CrushResistance

Long Term

100N/100mm

100N/100mm

100N/100mm

Short Term

500N/100mm

500N/100mm

500N/100mm

Bending Radius

Dynamic

60mm

60mm

60mm

Static

30mm

30mm

30mm

Optical Characteristics/ PRODUCT



G.652

G.657

50/125um

62.5/125um

OM3

OM4

Attenuation (+20℃)

@850nm



≤3.0dB/km

≤3.0dB/km

≤3.0dB/km

≤3.0dB/km

@1300nm



≤1.0dB/km

≤1.0dB/km

≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

≤0.36dB/km





@1550nm

≤0.22dB/km

≤0.22dB/km





Bandwidth

@850



≥500MHZ.km

≥200MHZ.km

≥1500MHZ.km

≥3500MHZ.km

@1300



≥500MHZ.km

≥500MHZ.km

≥500MHZ.km

≥500MHZ.km

Numerical Aperture




0.200±0.015NA

0.275±0.015NA

0.200±0.015NA

0.200±0.015NA

Cable Cut-off Wavelength


≤1260nm

≤1260nm





Environmental Characteristics/ PRODUCT

Transport Temperature

-20℃~﹢60℃

Storage Temperature

-20℃~﹢60℃

Installation Temperature

-5℃~﹢50℃

Operating Temperature

-20℃~﹢60℃
