Unitube non-armored cable GYFXY

Product Show/ PRODUCT

Copyrights Reserved

Product description/ PRODUCT

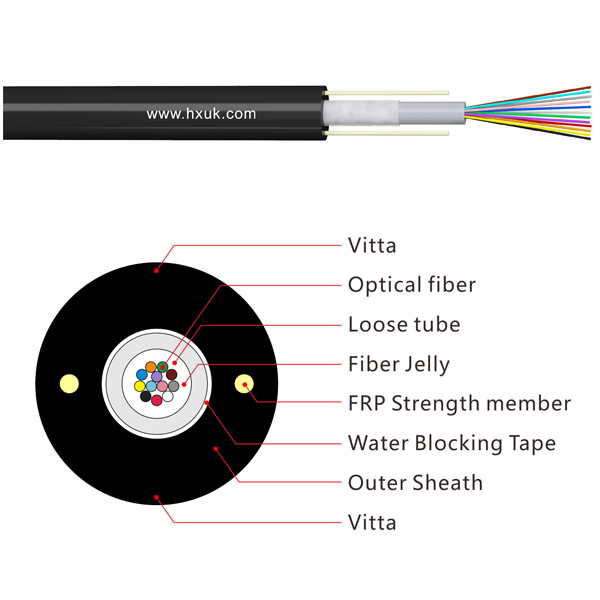

The fibers, 200/250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube. water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene(PE) sheath.

Product Picture/ PRODUCT




Product Features/ PRODUCT

·Good mechanical and temperature performance
·Non-metallic constructure helps to avoid Radio frequency interference and Electromagnetic interference, which is better for distribution in a minefield
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Good crush ability and soft
·PE sheath protects cable from ultraviolet radiation
·Two parallel FRP ensure tensile strength
·Small diameter, light weight and friendly installation
·Long delivery length

Product Standard/ PRODUCT

GYFXY cable complies with Standard YD/T 769-2010.

Optical Characteristics/ PRODUCT


G.652

G.655

50/125μm

62.5/125μm

Attenuation
(+20℃)

@850nm



≤3.0dB/km

≤3.0dB/km

@1300nm



≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km




@1550nm

≤0.22dB/km

≤0.23dB/km



Bandwidth (Class A)

@850



≥500MHZ·km

≥500MHZ·km

@1300



≥1000MHZ·km

≥600MHZ·km

Numerical Aperture




0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc


≤1260nm

≤1480nm



Technical Parameters/ PRODUCT


Cable Type


Fiber Count


Cable Diameter
mm


Cable Weight
Kg/km


Tensile Strength
Long/Short Term N


Crush Resistance
Long/Short Term
N/100m


Bending Radius
Static/Dynamic
mm

GYFXY-2~12

2~12

9.0

70

500/350

300/1000

15D/30D

GYFXY-2~12

2~12

10.2

90

600/350

400/1000

15D/30D


storage/Operating Temperature : -40℃ to + 70℃
